The Walkman: A Visual History (1979–2004)

A timeline of Sony’s cassette Walkman models from 1979 to 2004

Introduced in 1979, the Sony Walkman reshaped how people listened to music by making it personal, portable, and private.

This visual guide documents the complete evolution of Sony’s cassette Walkman models from 1979 to 2004, tracing their design shifts, technological changes, and cultural impact across twenty-five years of portable audio.

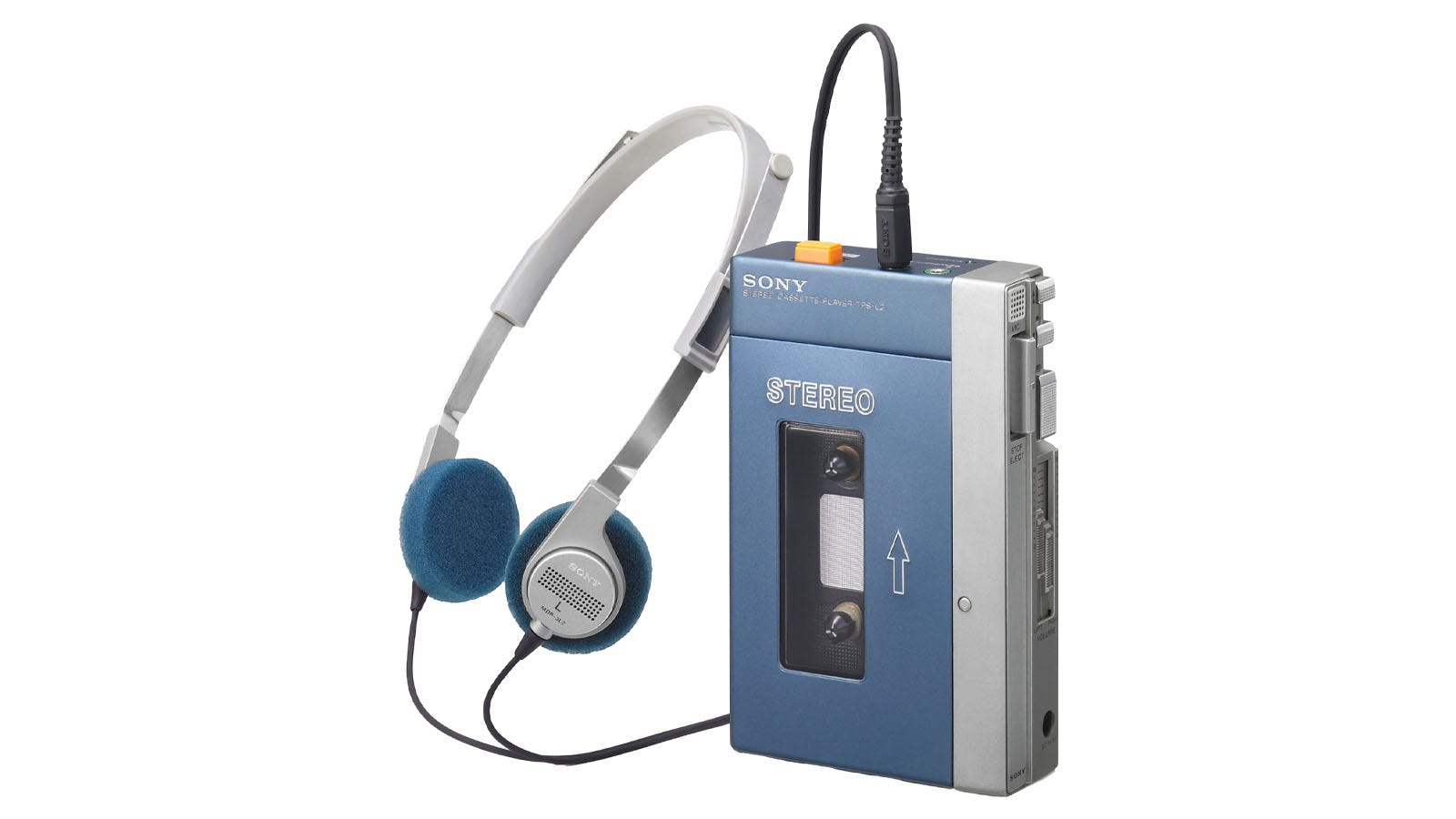

The Sony Walkman TPS-L2, released on July 1, 1979, changed how people listened to music on the go. It started with Sony’s co-founder Masaru Ibuka, who wanted a convenient way to enjoy opera during long flights. Sony engineers quickly responded by modifying the existing Pressman cassette recorder, building a working stereo prototype in just three days. They used the chassis of the TCM-600 cassette recorder, a model Sony had introduced the year before, in 1978.

Sony’s president was impressed enough by the prototype to predict sales of 2.5 million units, far beyond typical cassette recorders. To meet that goal, the chairman cut development from a year to four months and personally set key specifications.

Despite internal doubts, the first 3,000 units sold out immediately. A second run of 2,200 followed and vanished just as fast.

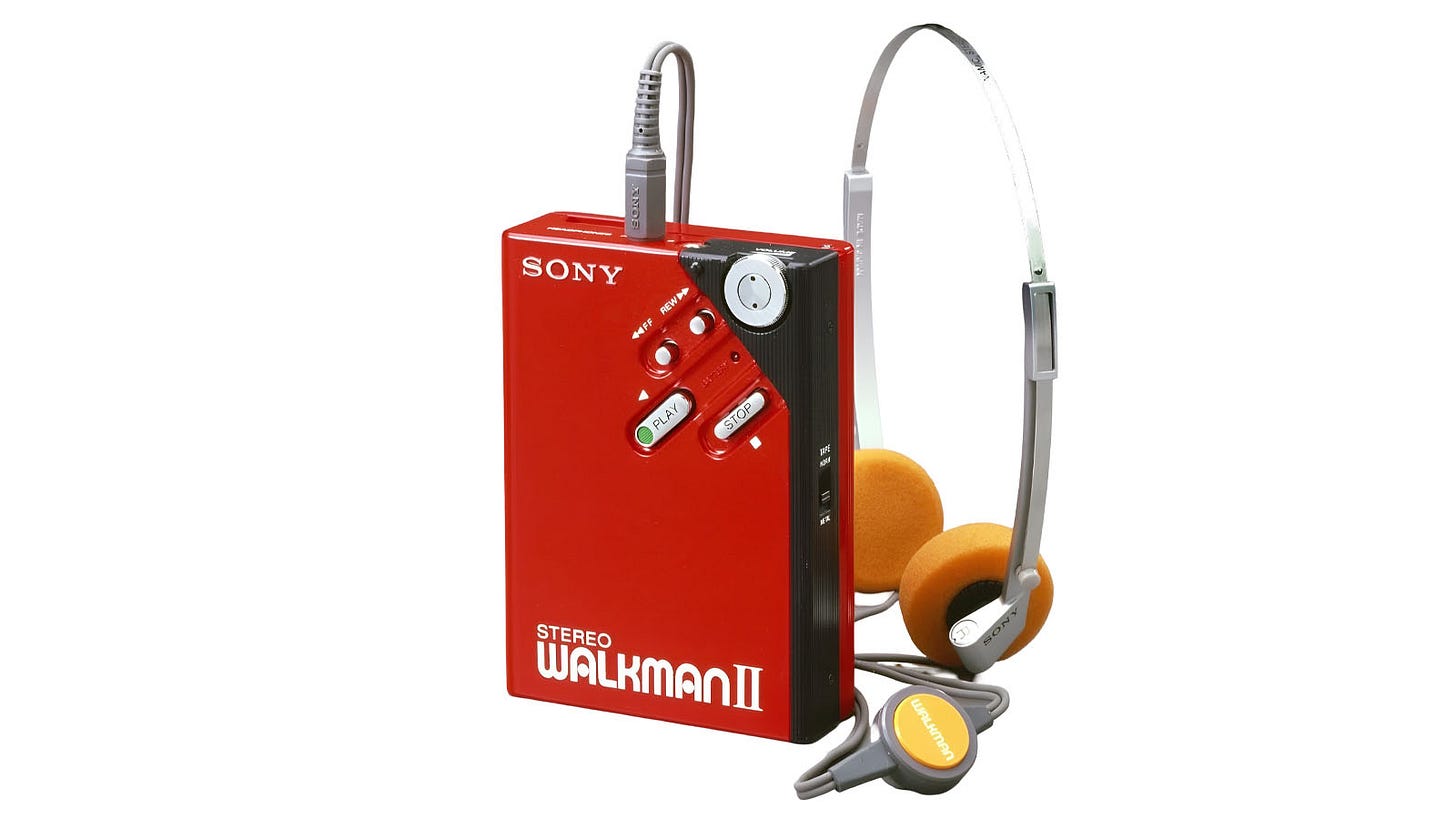

Released in 1981, the WM-2, or Walkman II, was the smallest stereo cassette player of its time. Its size came from concrete changes: the tape head moved into the lid and a new cassette insertion system replaced the earlier layout.

The cassette window flipped, placing the mechanism on the front and establishing the template for later Walkmans. It supported metal tapes but lacked Dolby B. Power came from AA or D cells, delivering up to 70 hours with the external case, and included dual headphone jacks and a tone switch.

Introduced in 1982, the WM-5 followed the WM-2 with nearly identical mechanics. Its pressed metal casing replaced plastic, making it smaller and more durable. The metal shell forced the volume control inside, with a small window added to show the setting.

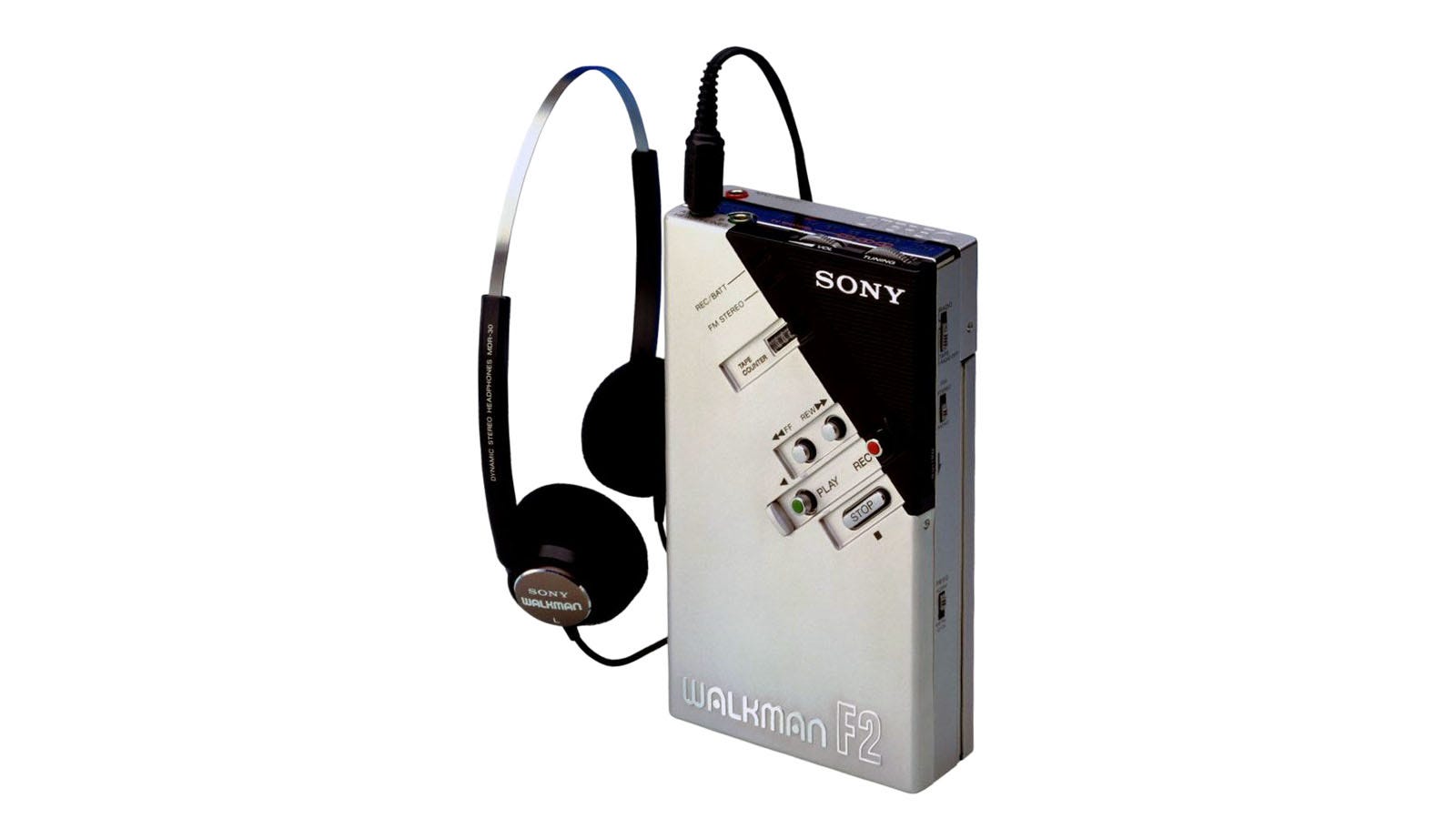

Later that year, Sony released the WM-F2, extending the WM-2 with added functions. It combined a stereo cassette player, FM radio, and recording. A built-in erase magnet handled recording and disengaged automatically during playback.

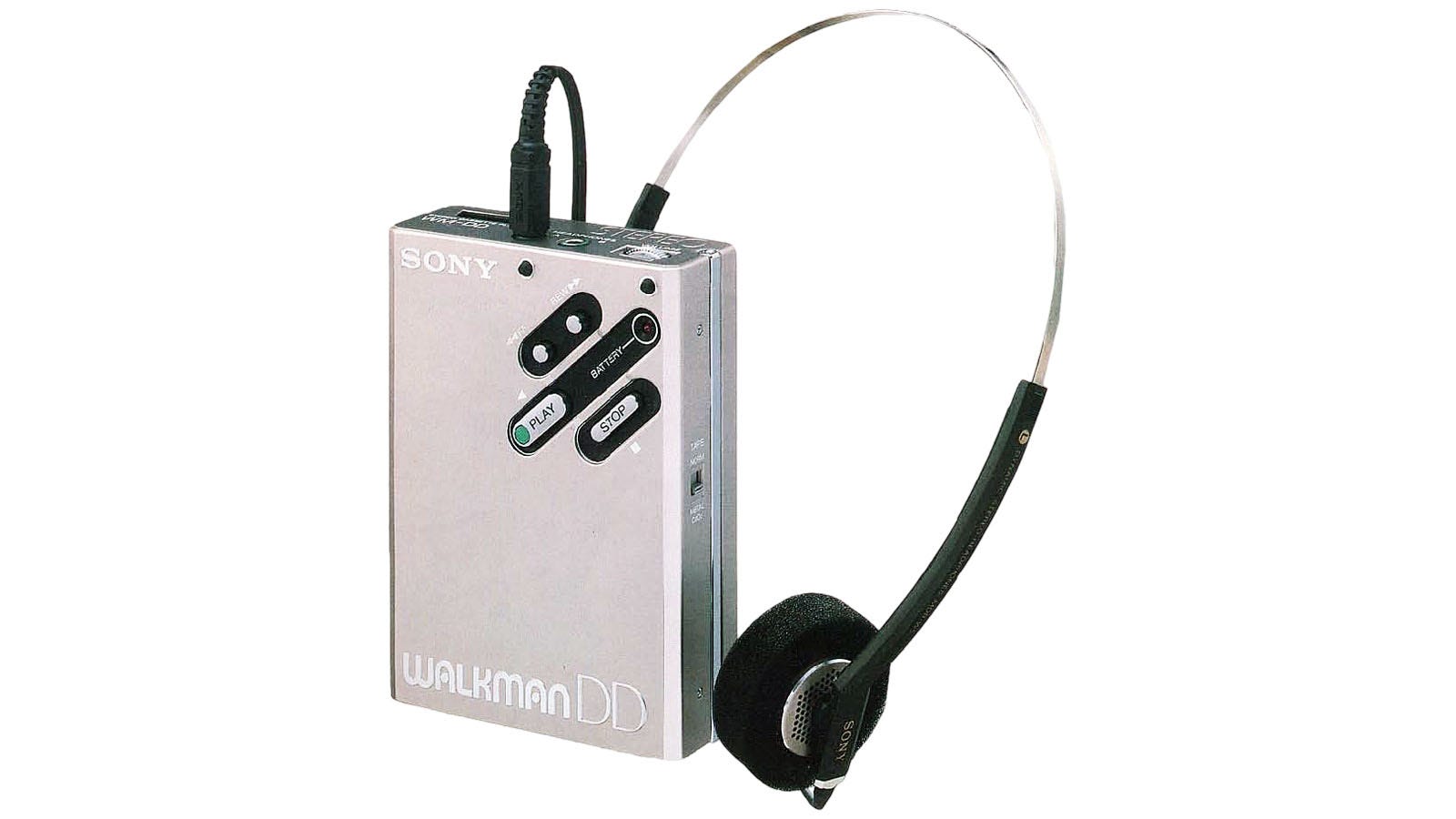

Also released in 1982, the WM-DD merged the WM-2’s compact size with the WM-5’s metal body and added capstan servo control from the TC-D5. Its new Disc Drive mechanism cut wow and flutter, improving playback stability. Dolby was absent, but tape control was markedly tighter.

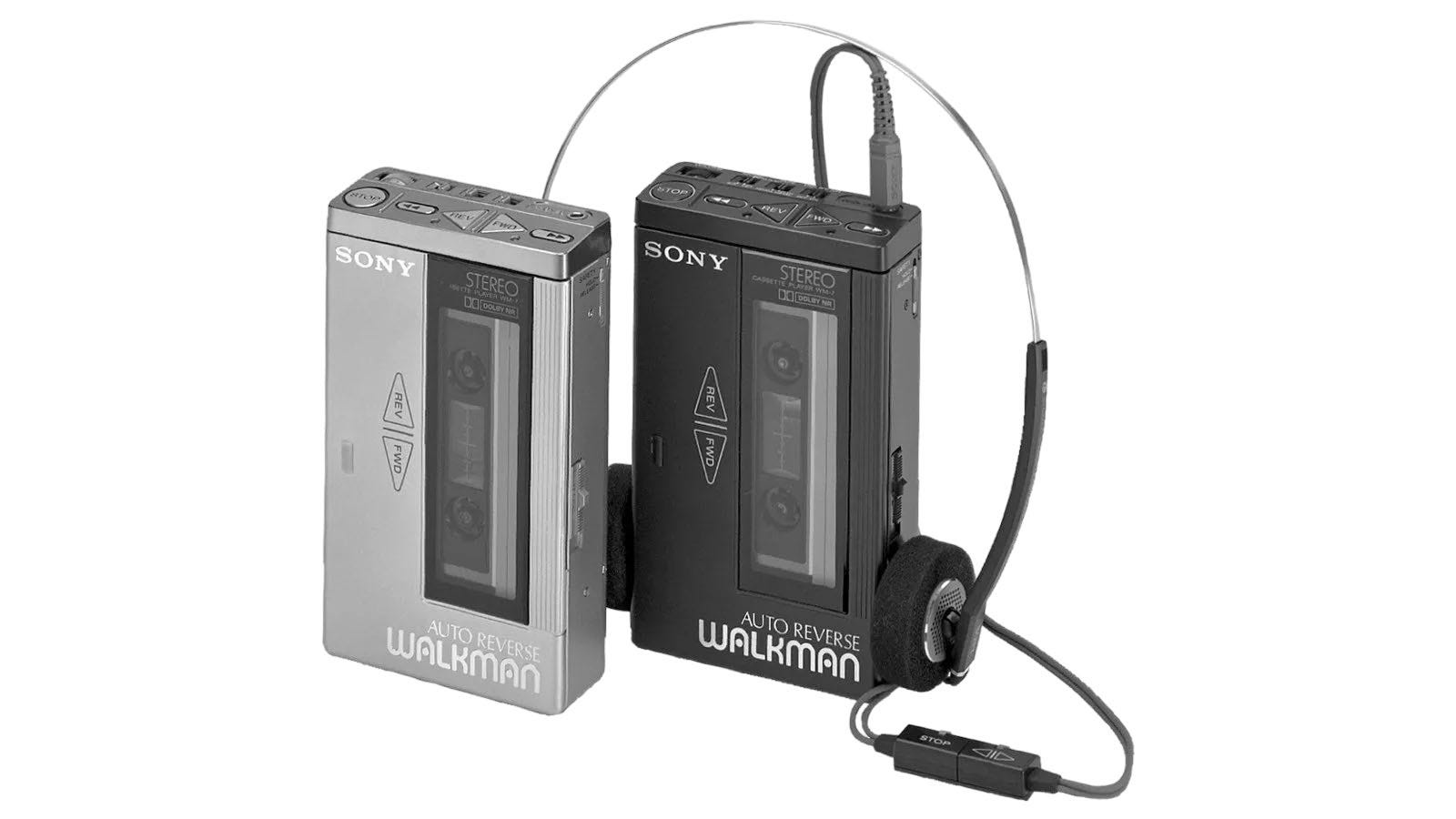

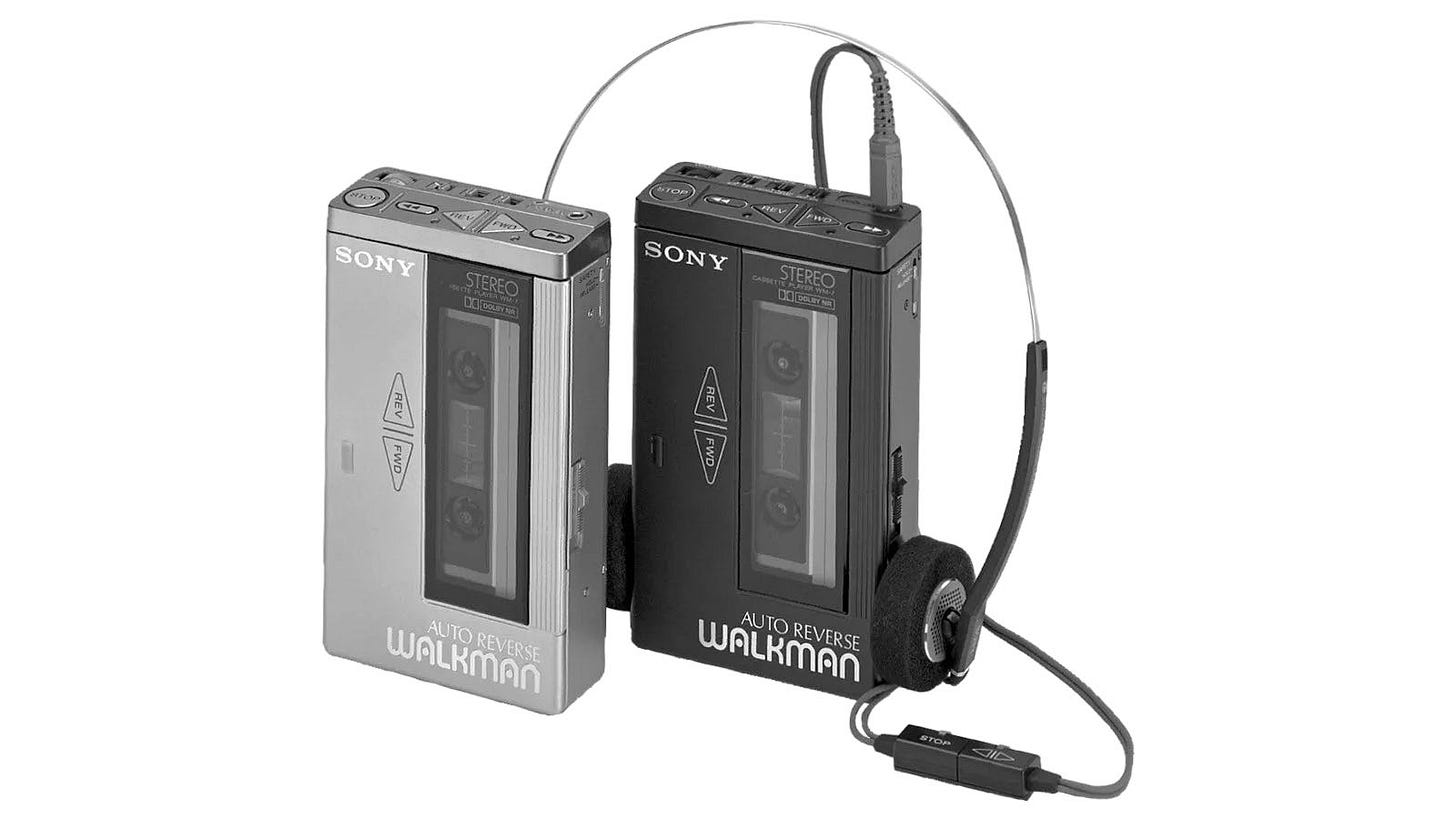

Introduced later in 1982, the WM-7 replaced mechanical controls with electronic logic keys and added remote operation. It brought auto-reverse and Dolby B, while a polished metal mechanism with magnetic take-up clutches improved stability. An efficient DC-DC converter allowed long playback from two AA batteries.

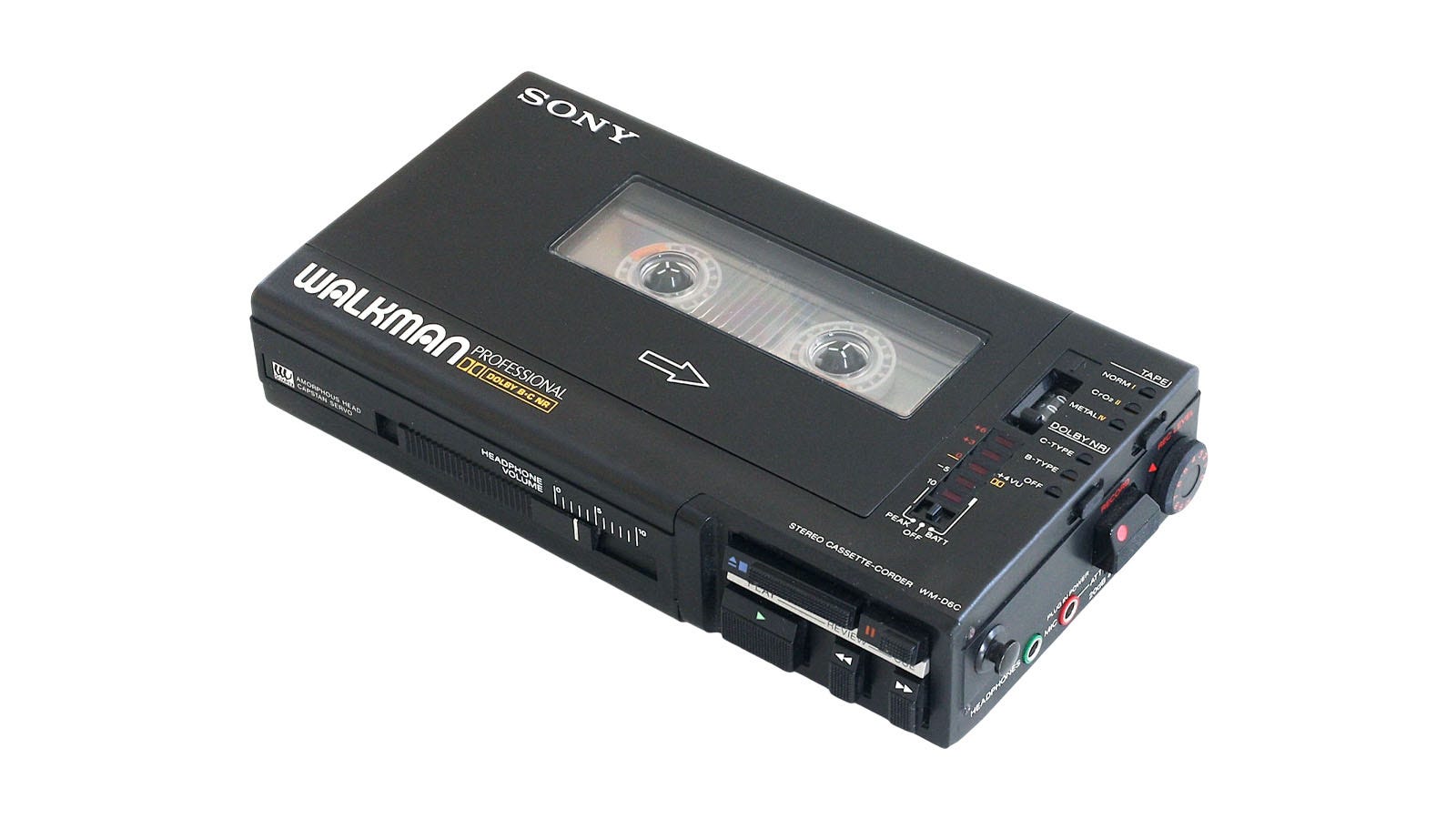

Closing 1982, Sony released the WM-D6 as part of its Professional line. It earned a reputation as the era’s peak Walkman, nicknamed the “Daddy” by enthusiasts. A quartz-controlled motor delivered exact tape speed, a requirement for reliable recording work.

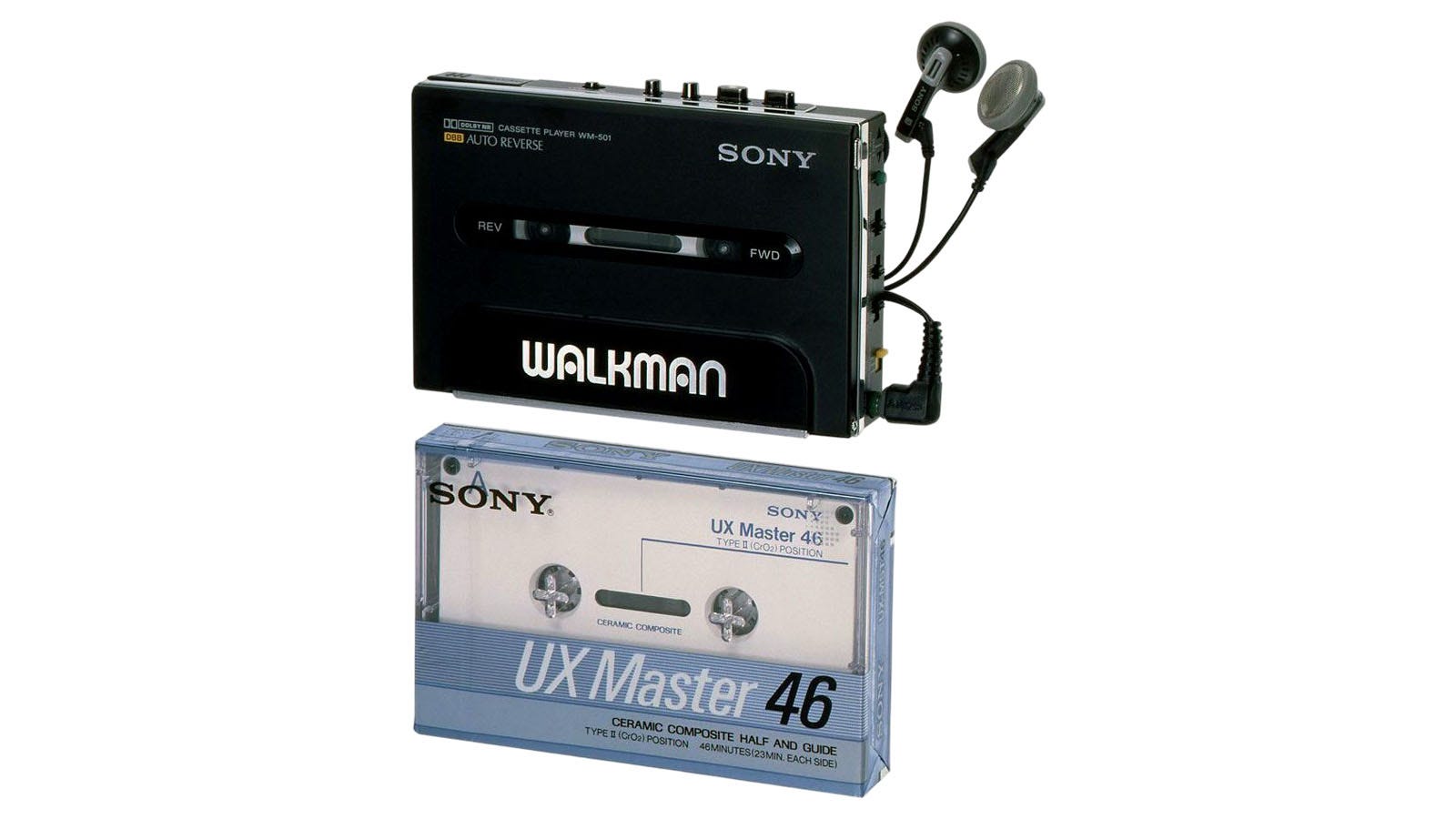

Introduced in 1983, the WM-10 shrank the Walkman to cassette-case size. That scale came from aggressive miniaturization, including a flat disc motor and a bearing integrated into the supply spool. Despite its size, it offered Dolby B, supported normal, chrome, and metal tapes, and included auto-stop. The tradeoff was durability, an issue Sony later addressed in follow-up designs.

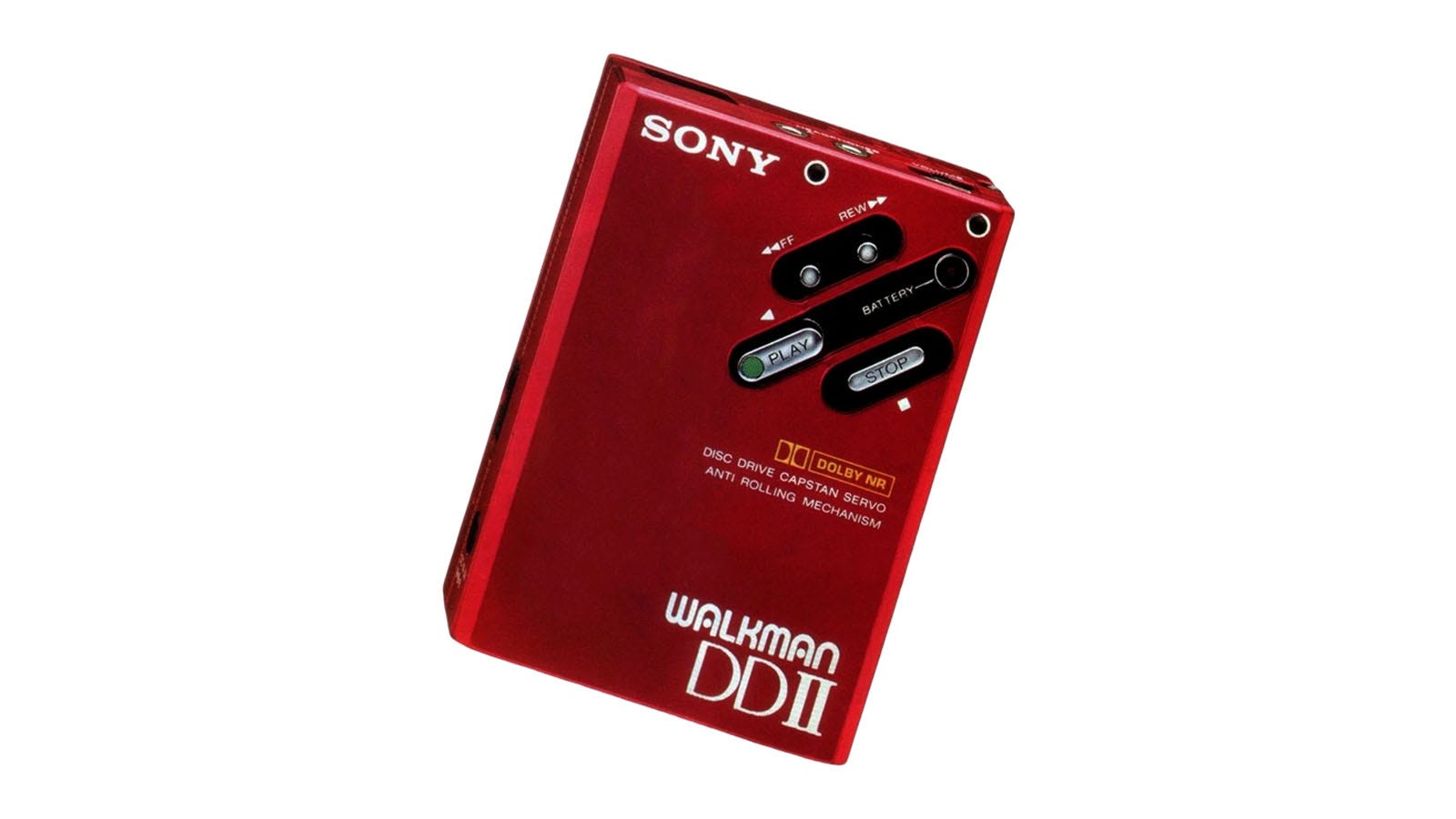

Released in 1984, the WM-DD2 added Dolby B using miniature ICs powered directly by its 3-volt supply. Doing so required a full internal redesign. Later DD models refined the sound further, but the DD2 marked the first jump in fidelity for the Disc Drive line.

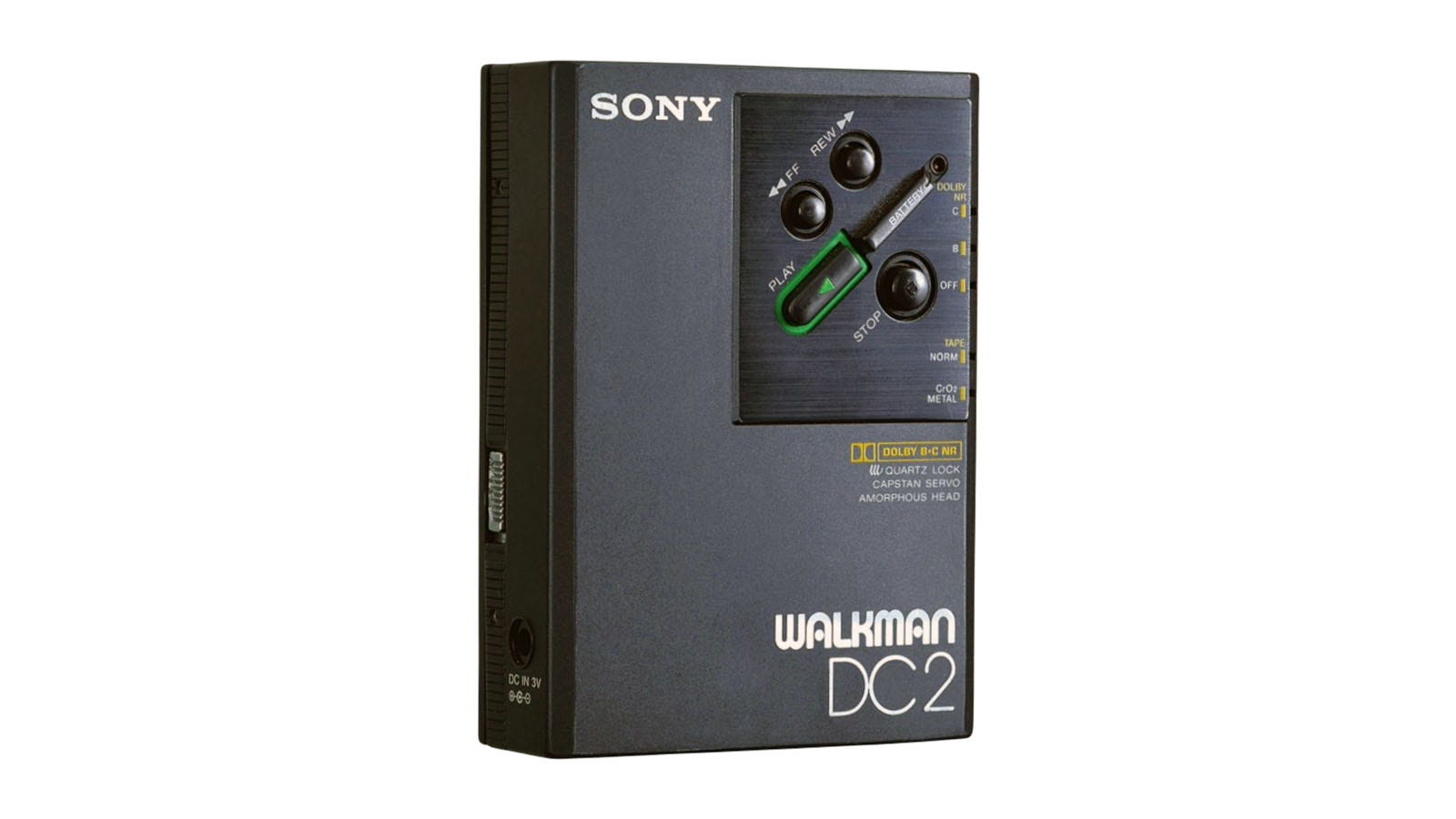

Also released that year, the WM-DC2 added both Dolby B and Dolby C. Custom ICs supported the system, while a laser amorphous head improved durability and playback accuracy. A dedicated line-out signaled its professional intent.

Launched in 1984, the WM-F5 became the first Sports Walkman. Its yellow, impact-resistant shell used splash-proof sealing and rubberized controls, allowing brief immersion. It paired that rugged build with the Disc Drive mechanism and added an FM radio for outdoor use.

Unveiled in 1985, the WM-50 moved away from sharp-edged housings in favor of softer contours. The change improved handling and comfort, signaling a turn toward ergonomics over rigid form.

Also released in 1985, the WM-101 used a slim rechargeable “gum stick” cell while retaining AA support. Weighing under 200 grams, it favored portability. It shipped in black, red, light blue, and gray.

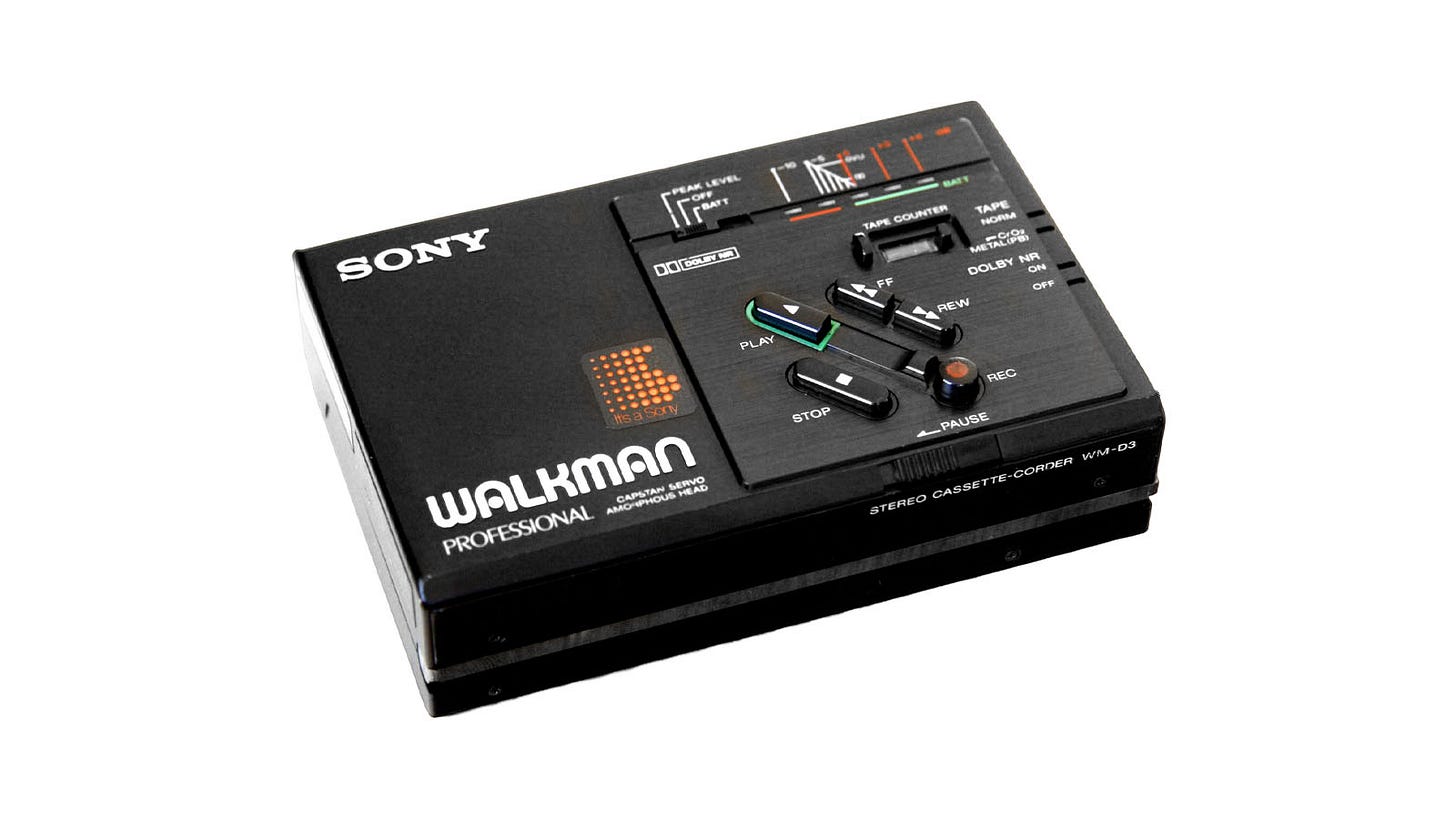

By 1985, the WM-D3 joined the Walkman Professional line with a sliding pause control, built-in recording preamps, and Dolby noise reduction. Its compact recorder design earned respect among audio professionals.

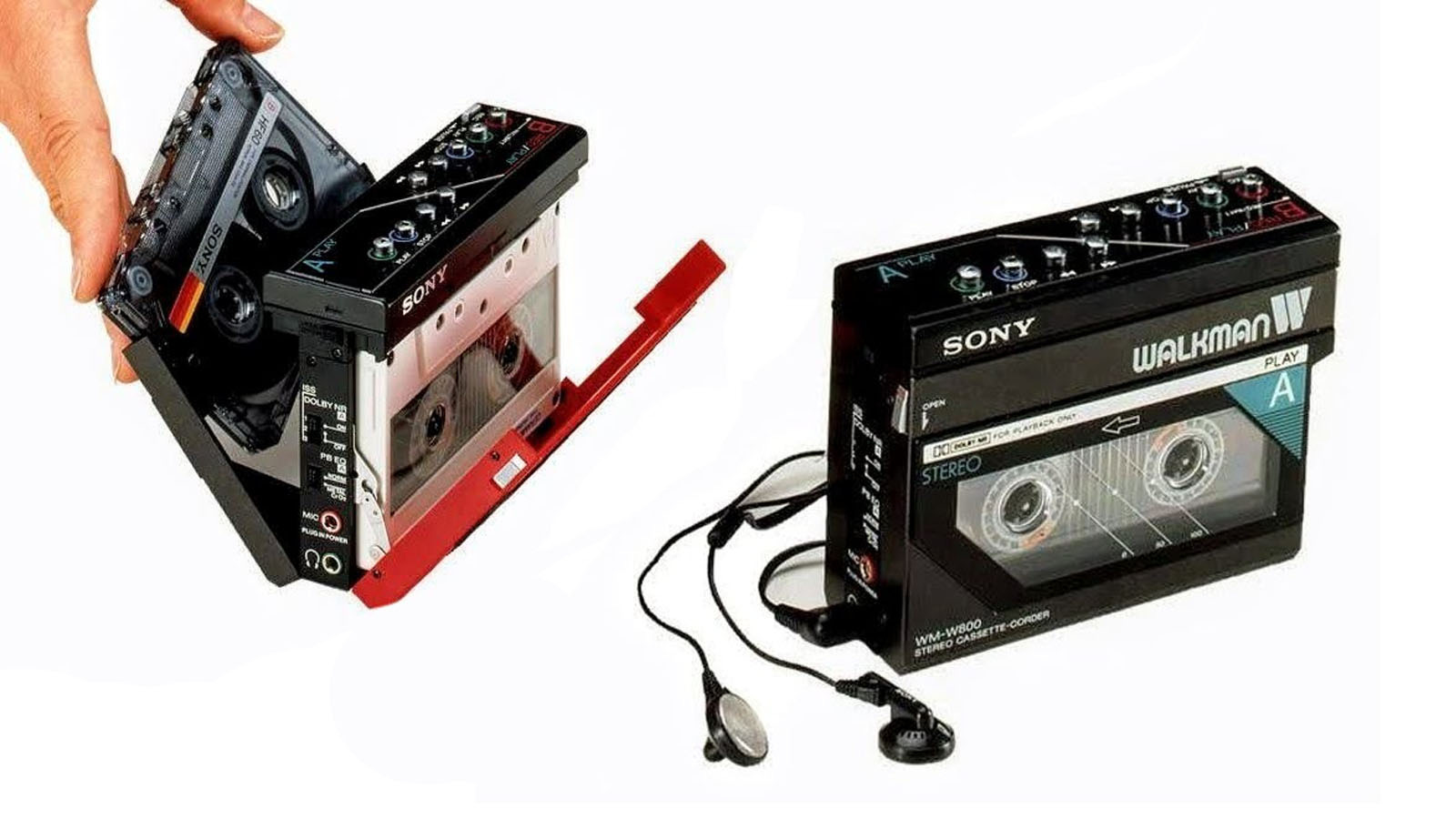

That same year, the WM-W800 was the only Walkman with dual tape decks, allowing cassette duplication without external gear. Sony joined two WM-10 mechanisms back-to-back, adding dedicated recording electronics. One deck handled recording with an erase head and pause control; the other managed playback with Dolby B and support for normal, chrome, and metal tapes. Compact and capable of live recording via a built-in stereo mic, its high price kept it mostly in enthusiast and professional hands.

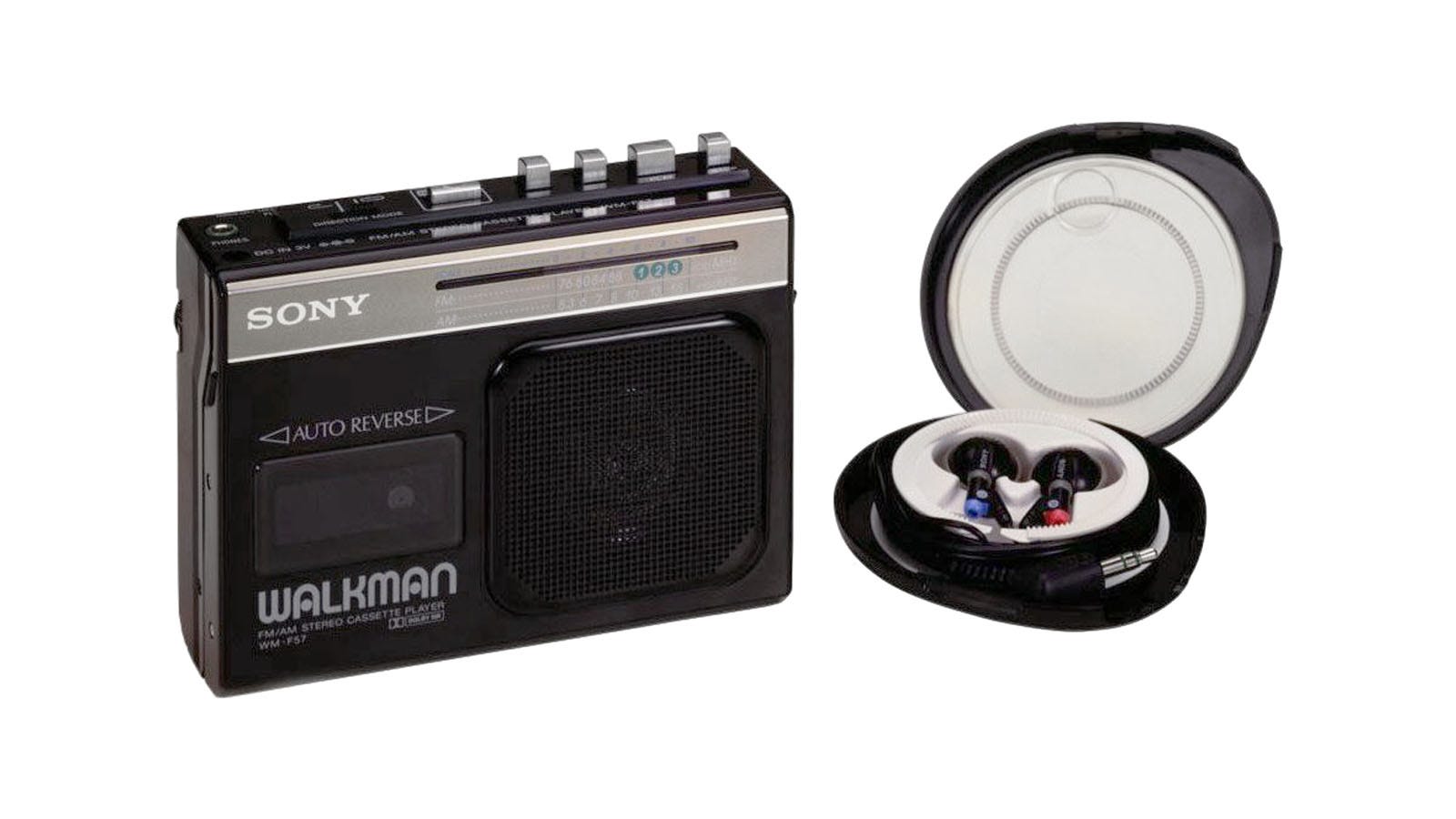

Arriving in 1986, the WM-F57 combined FM/AM radio with auto-reverse cassette playback in a compact body. A built-in front speaker enabled casual listening without headphones. It ran on two AA batteries, supported Dolby B, allowed manual tape selection, and came in black, white, dark blue, and red.

By 1987, the WM-501 gained recognition through its monkey-themed commercials. It integrated a gumstick battery into the body, shrinking the player to roughly cassette size, and introduced Deep Bass Boost.

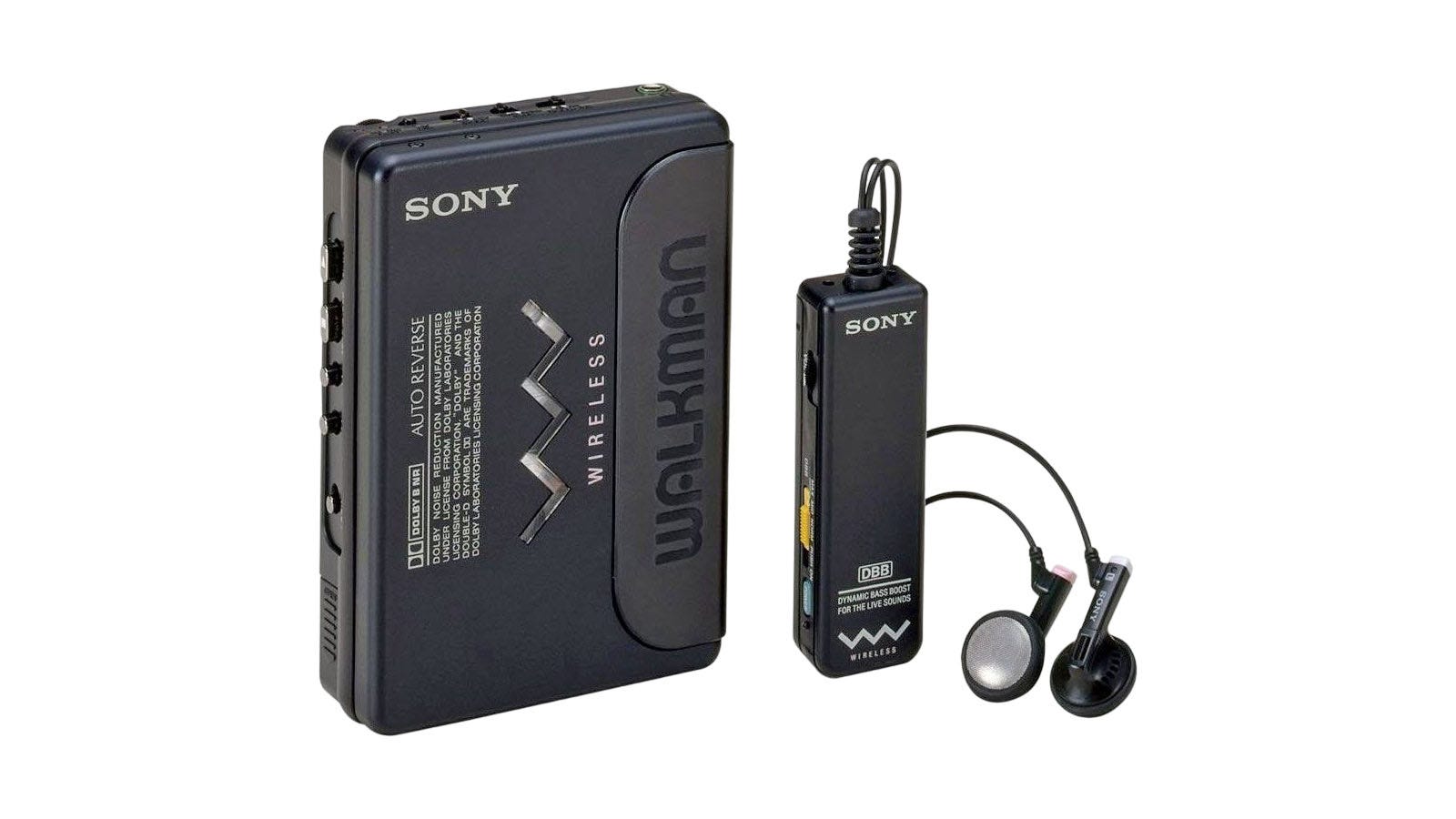

Introduced in 1988, the WM-505 paired a compact body with wireless headphones, long before Bluetooth. Its all-metal construction set it apart from plastic models in durability.

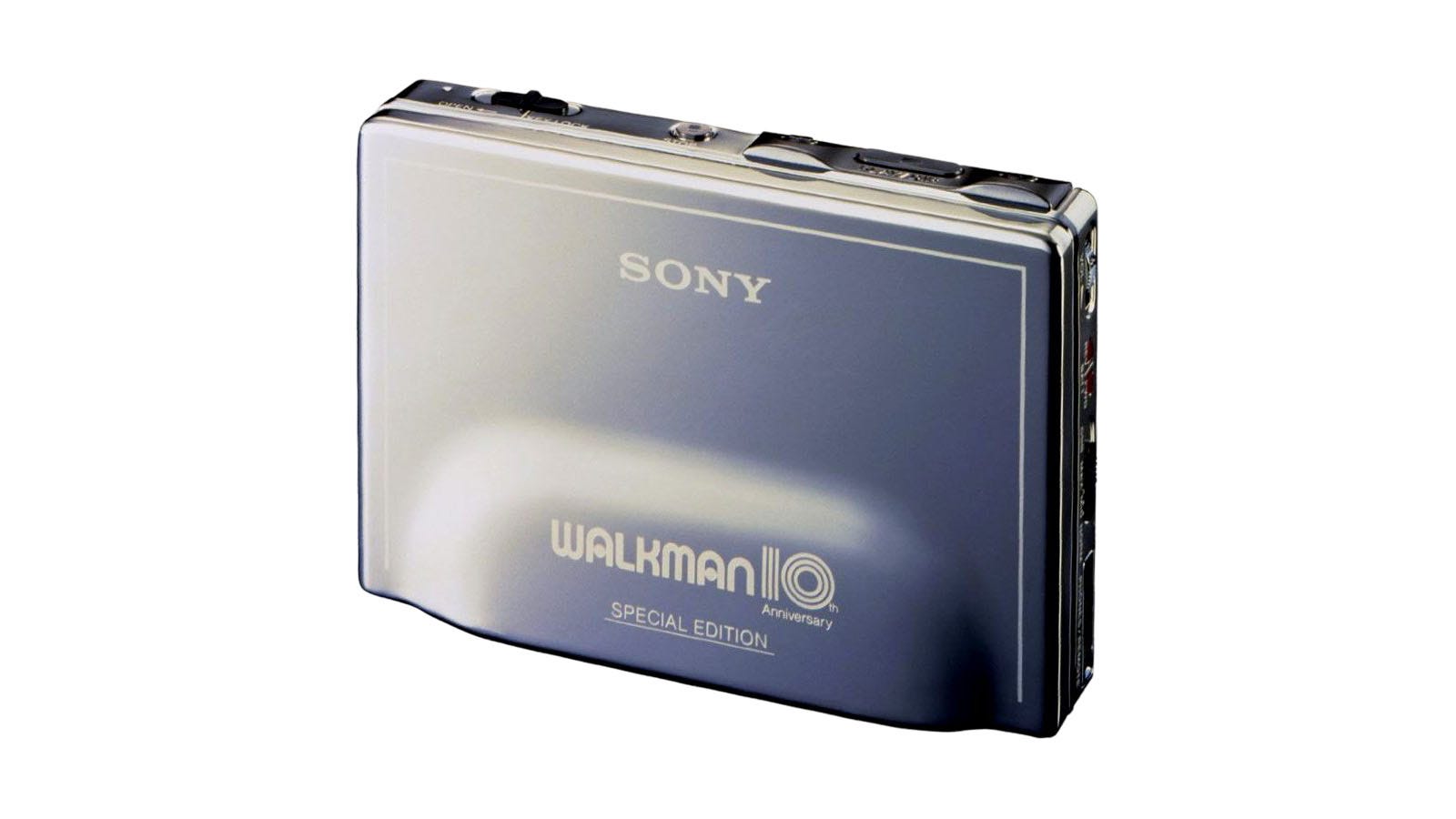

Released in 1989 for the Walkman’s 10th anniversary, the WM-701S added Dolby C and an EX Amorphous head. A metal chassis in gray housed a manual tape selector. A separate silver-plated run of 200 units became highly collectible.

Released in 1989, a decade after the first Walkman, the WM-DD9 became known as the “King of Walkmans.” Its precise sound and solid construction placed it at the top of Sony’s cassette line.

As the 1990s began, the WM-600 reflected the Walkman’s early ’90s refinement. Its key addition was automatic tape direction detection, identifying side A or B without holes or indicators.

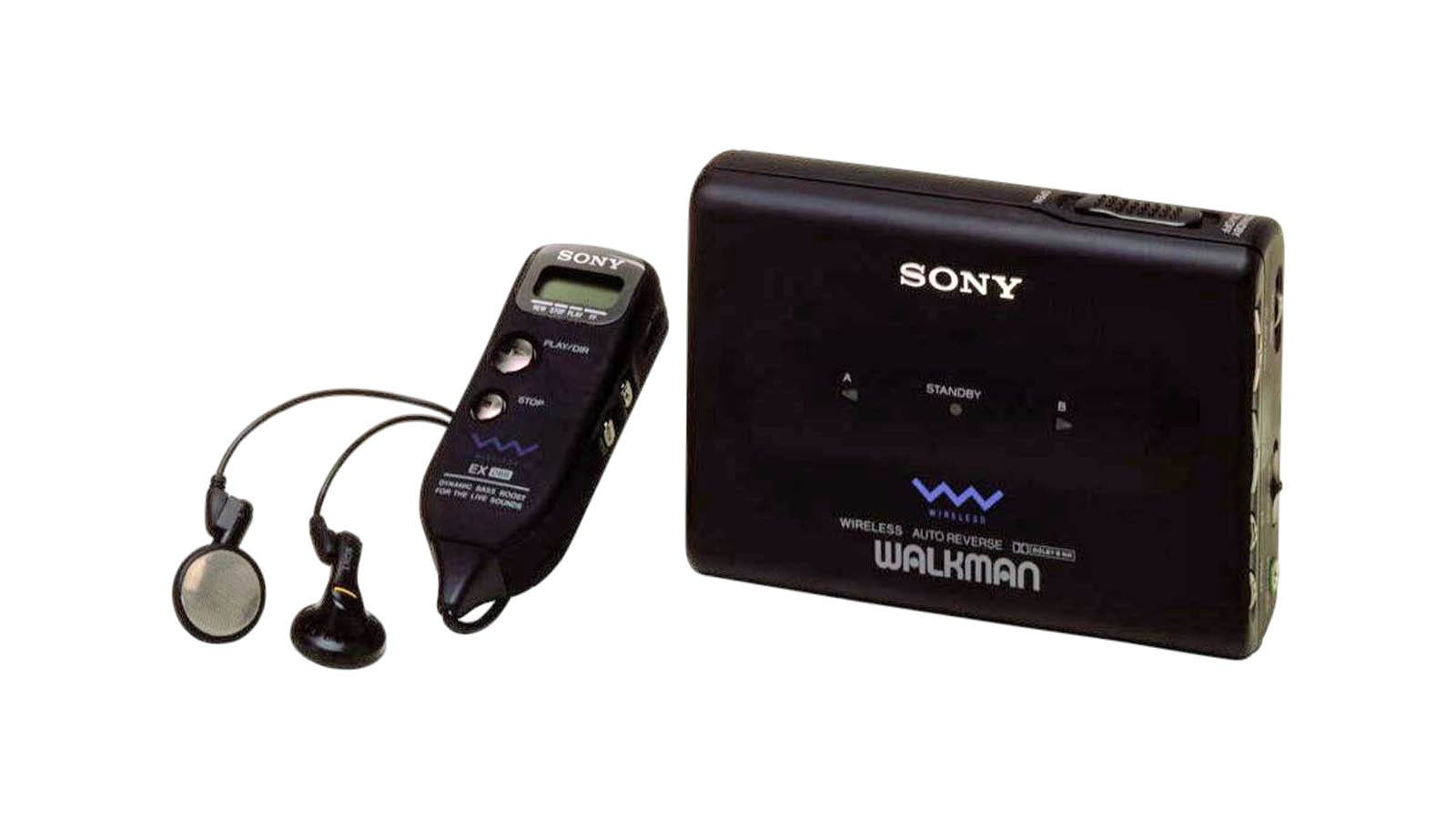

Also released in 1990, the WM-805 was a wireless cassette player with an LCD remote. It supported 16 pairing codes, used an EX Amorphous head, and included DBB and auto-reverse.

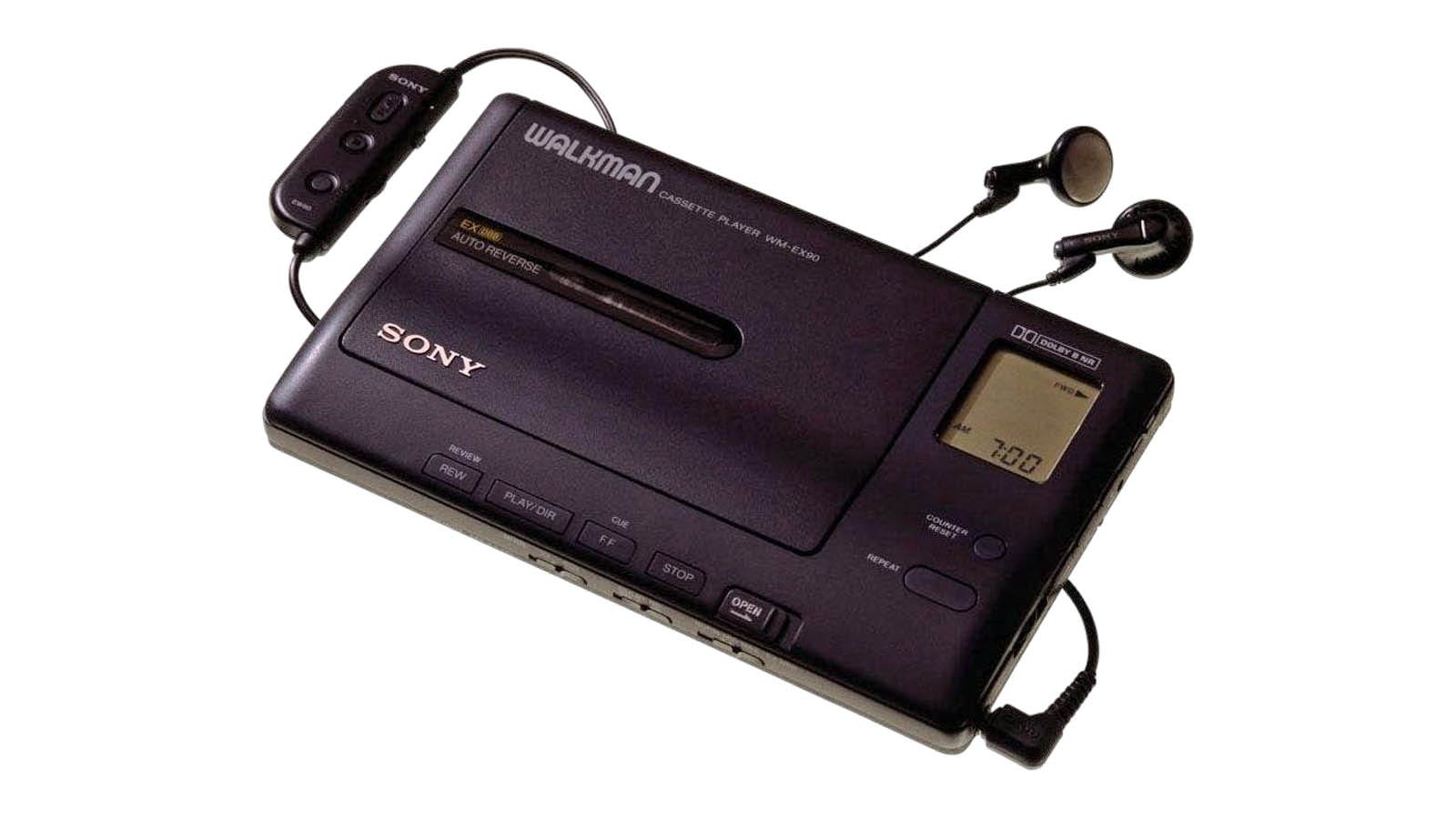

Released in 1991, the WM-EX90 was built for stationary use, aimed at study and practice rather than portability. Its larger body supported a section repeat function that looped selected tape segments with adjustable intervals. A built-in LCD displayed a digital counter, clock, and battery status.

Most splashproof Walkman belonged to the bright, rugged Sports line. In 1991, Sony took a different approach with the WM-WX88. It added a waterproof wireless receiver and splashproof earphones. A wireless remote enabled hands-free use around water. Battery life was limited to about two hours, offset by a quick charger that restored roughly half the charge in ten minutes.

Released in 1991, the WM-SX77 took a more traditional rugged approach. A 4 mm resin body and aluminum cassette lid protected it from drops and pressure. It used a wired remote instead of wireless controls and focused on durability over convenience.

Battery life reached roughly 33 hours with alkaline cells, and an anti-shock system reduced vibration during movement. Unlike the WM-WX88’s wireless, water-focused design, the SX77 prioritized endurance and physical resilience for sustained outdoor use.

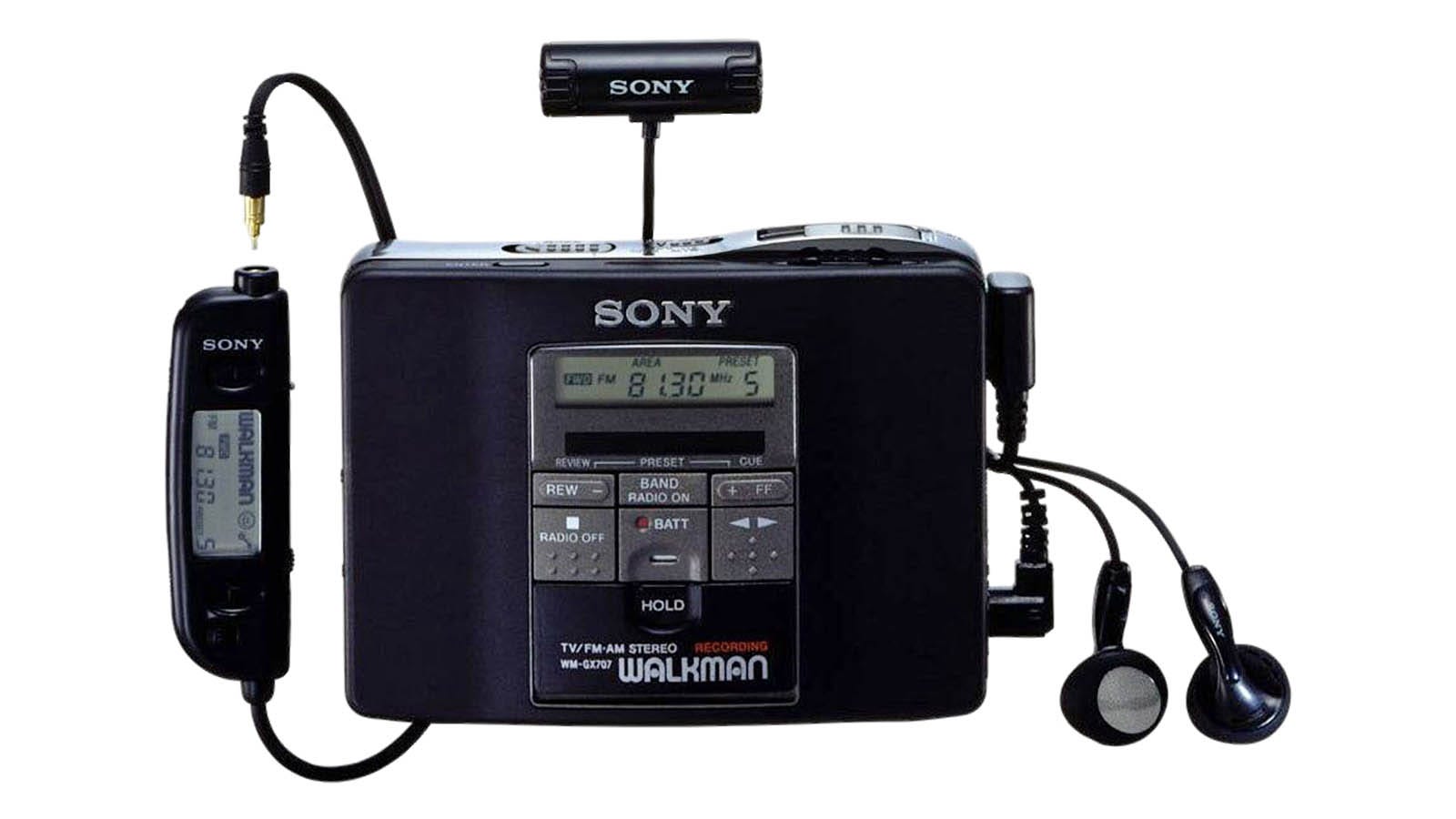

Released in 1992, the WM-GX707 combined AM/FM/TV radio, auto-reverse, Dolby B, and EX Amorphous heads. A metal case, external compartment, and remote completed the package.

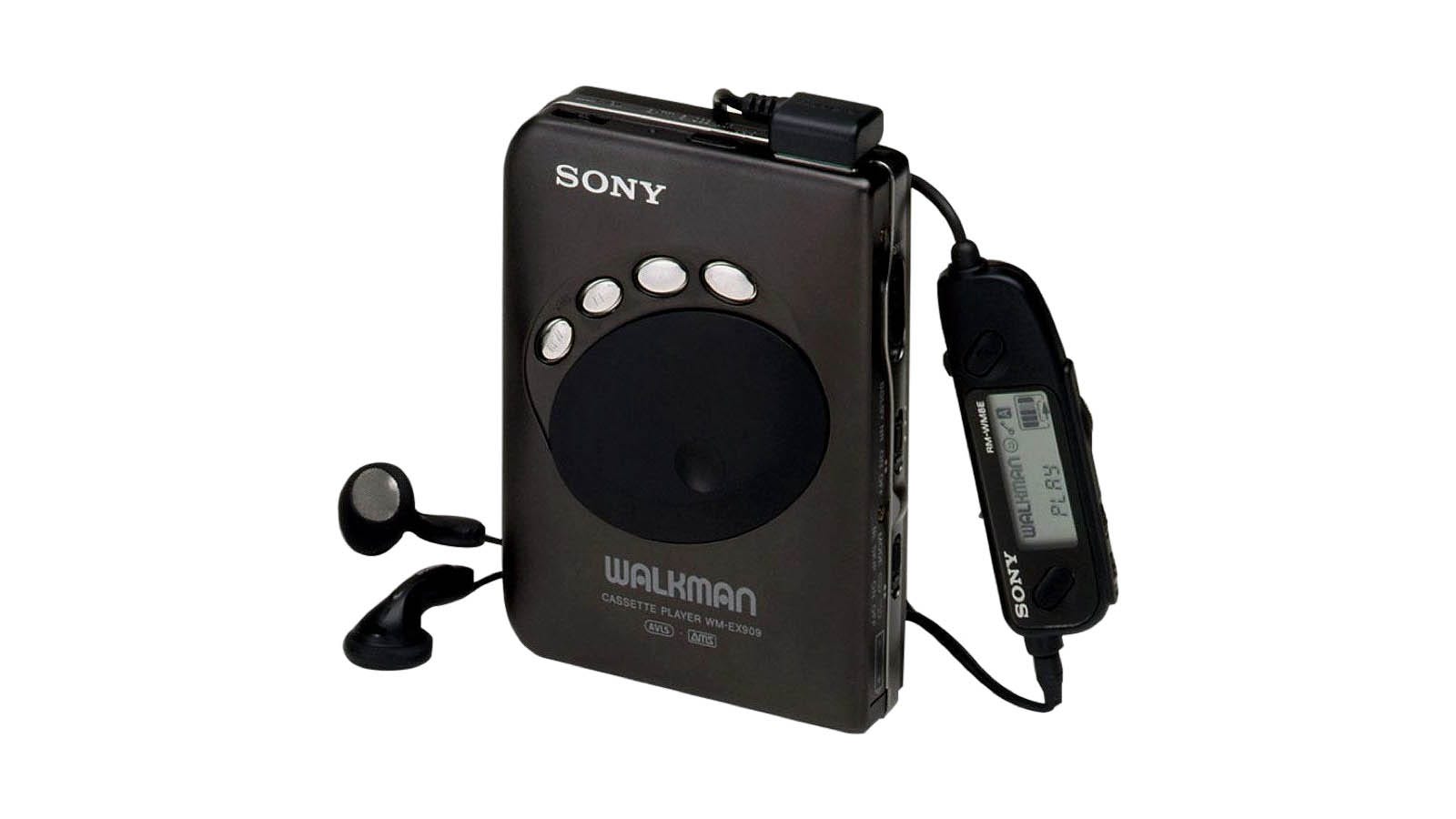

Released in 1992, the WM-EX909 used a rare dual-head playback system. Instead of a single auto-reverse head, it employed two fixed playback heads, each aligned for one direction. This preserved consistent sound in both directions without mechanical adjustment, a solution reserved for Sony’s top-tier models.

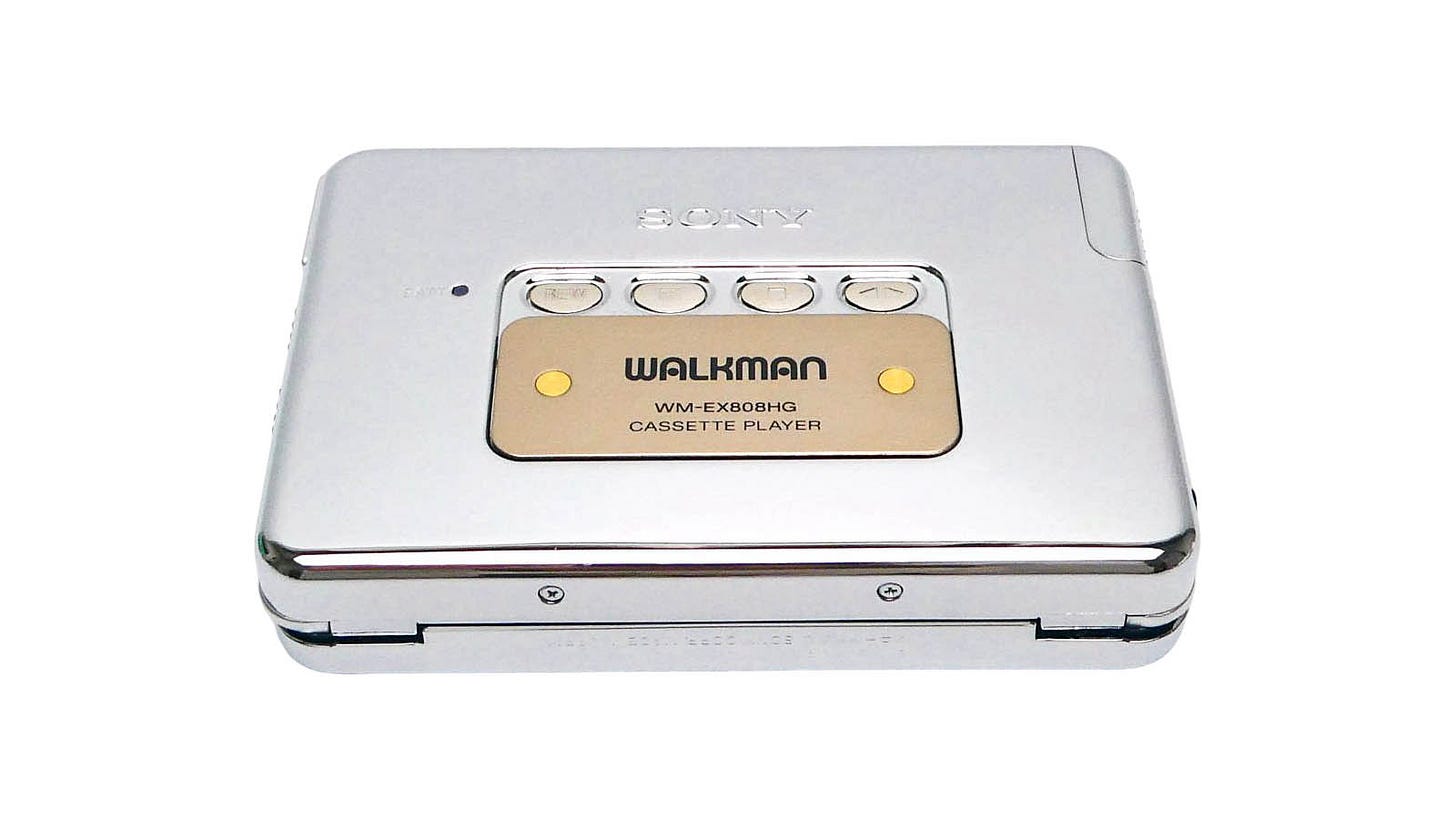

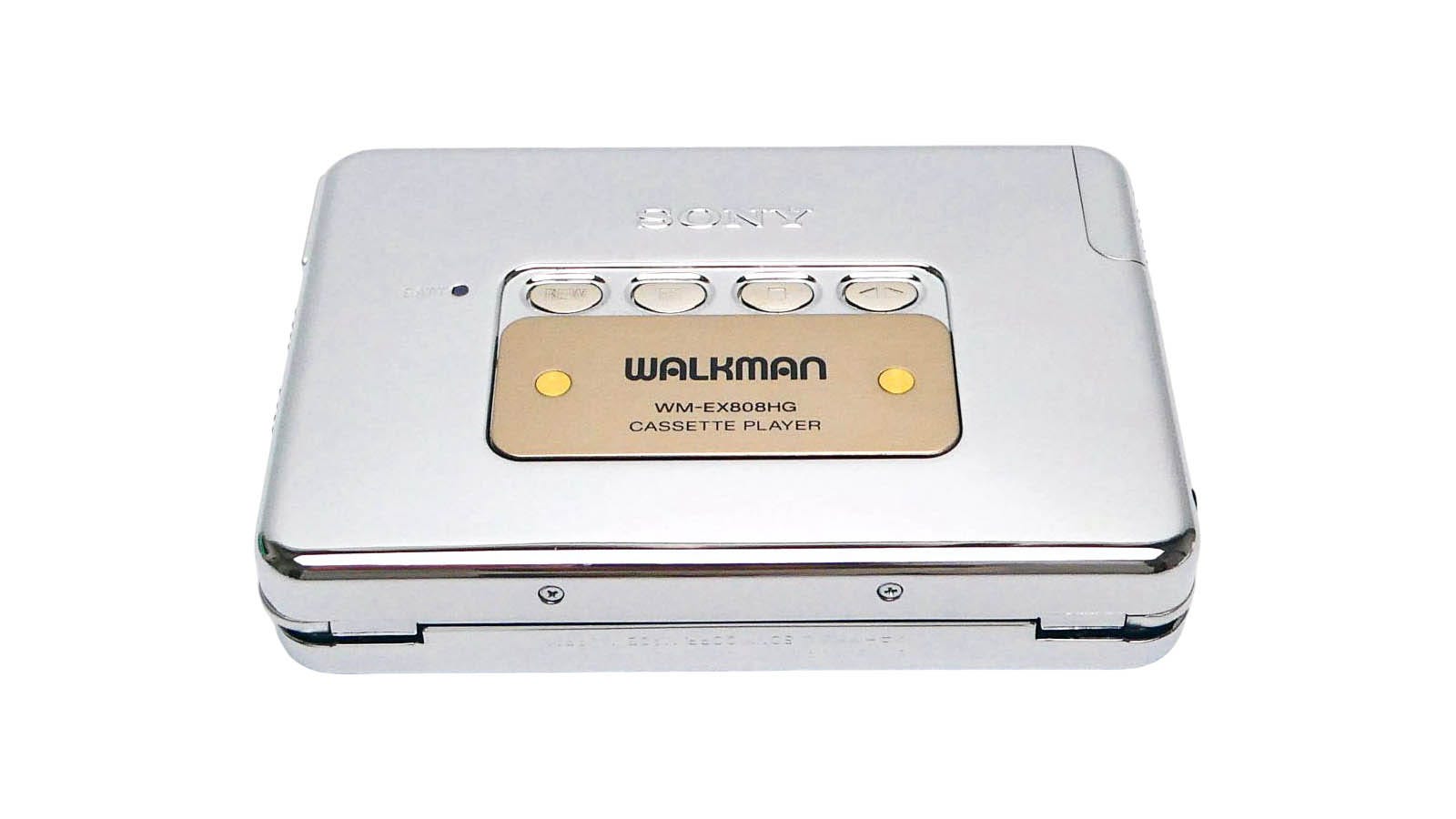

Released in the early 1990s, the WM-EX808HG reframed the Walkman as an object, not just a player. Based on the EX808, it used a chrome-plated finish and an aluminum-magnesium chassis from Sony’s “thin husband” line. The HG label marked it as High Grade, reserved for models with upgraded materials. Audio hardware matched the presentation: an EX amorphous head, Dolby B, and EXDBB, paired with auto-reverse in a slim body.

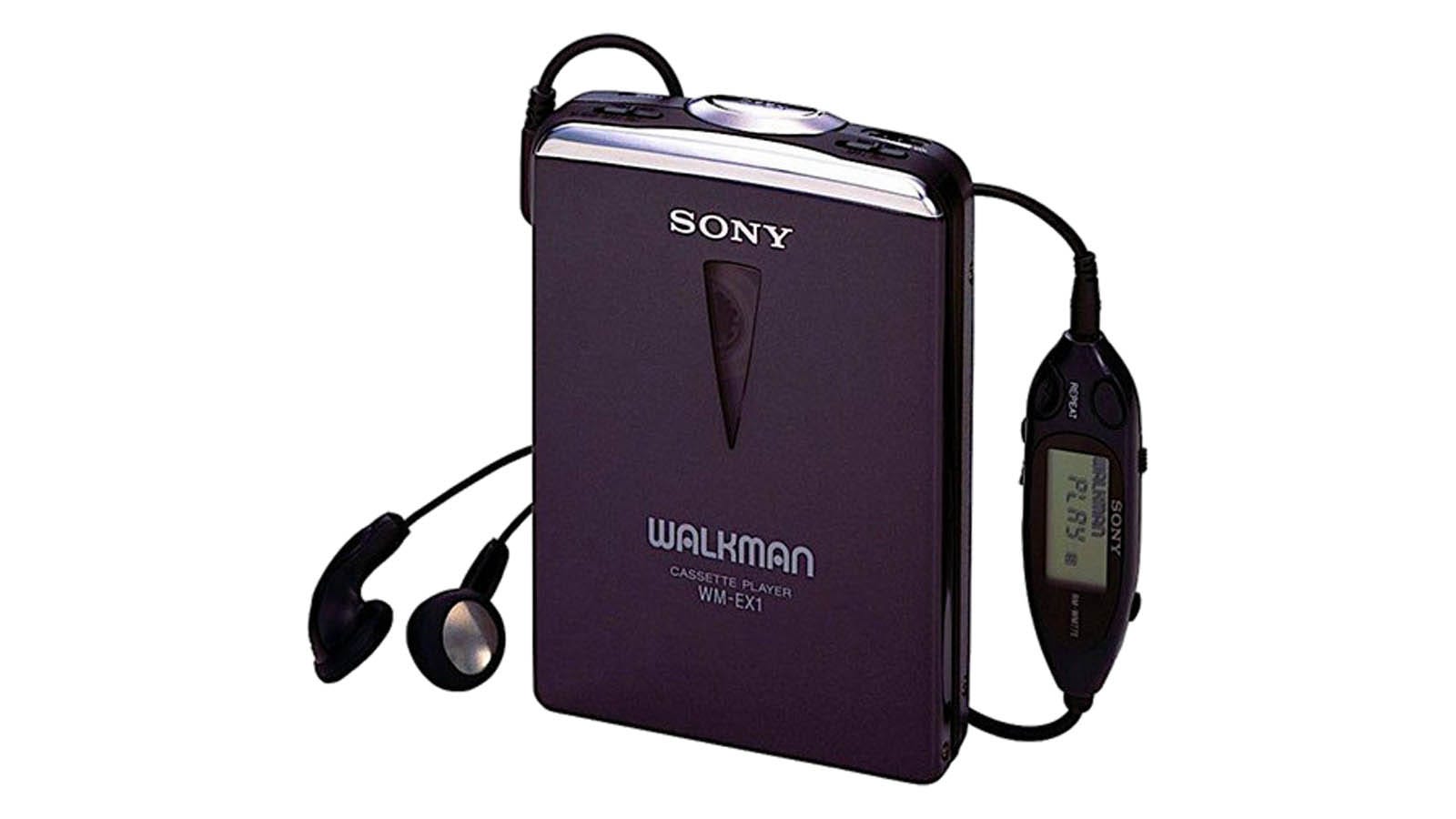

Released for the Walkman’s 15th anniversary, the WM-EX1 introduced vertical cassette loading. The change reworked how tapes were inserted while retaining EX-line hardware, including auto-reverse and EXDBB, in a compact, premium shell.

Later that year, Sony released the WM-FX1, adding a built-in radio. Its success led to the WM-EX2 and WM-FX2 in 1995, which carried the vertical-loading layout forward in a refined form.

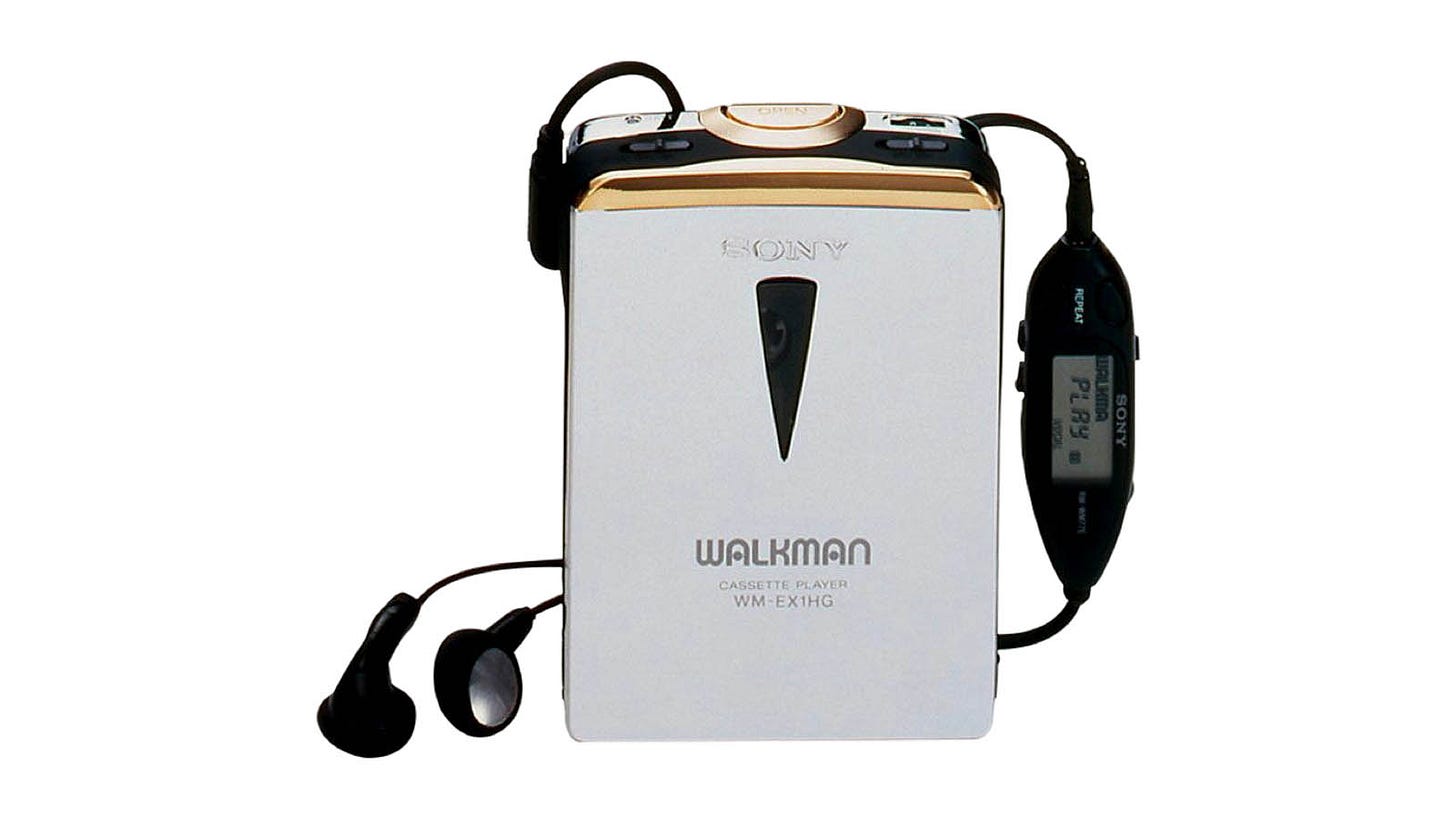

Sony also produced the WM-EX1HG Gold, a gold-plated edition marking the 15th anniversary. It was never sold and was distributed only to key business partners in Japan and Hong Kong.

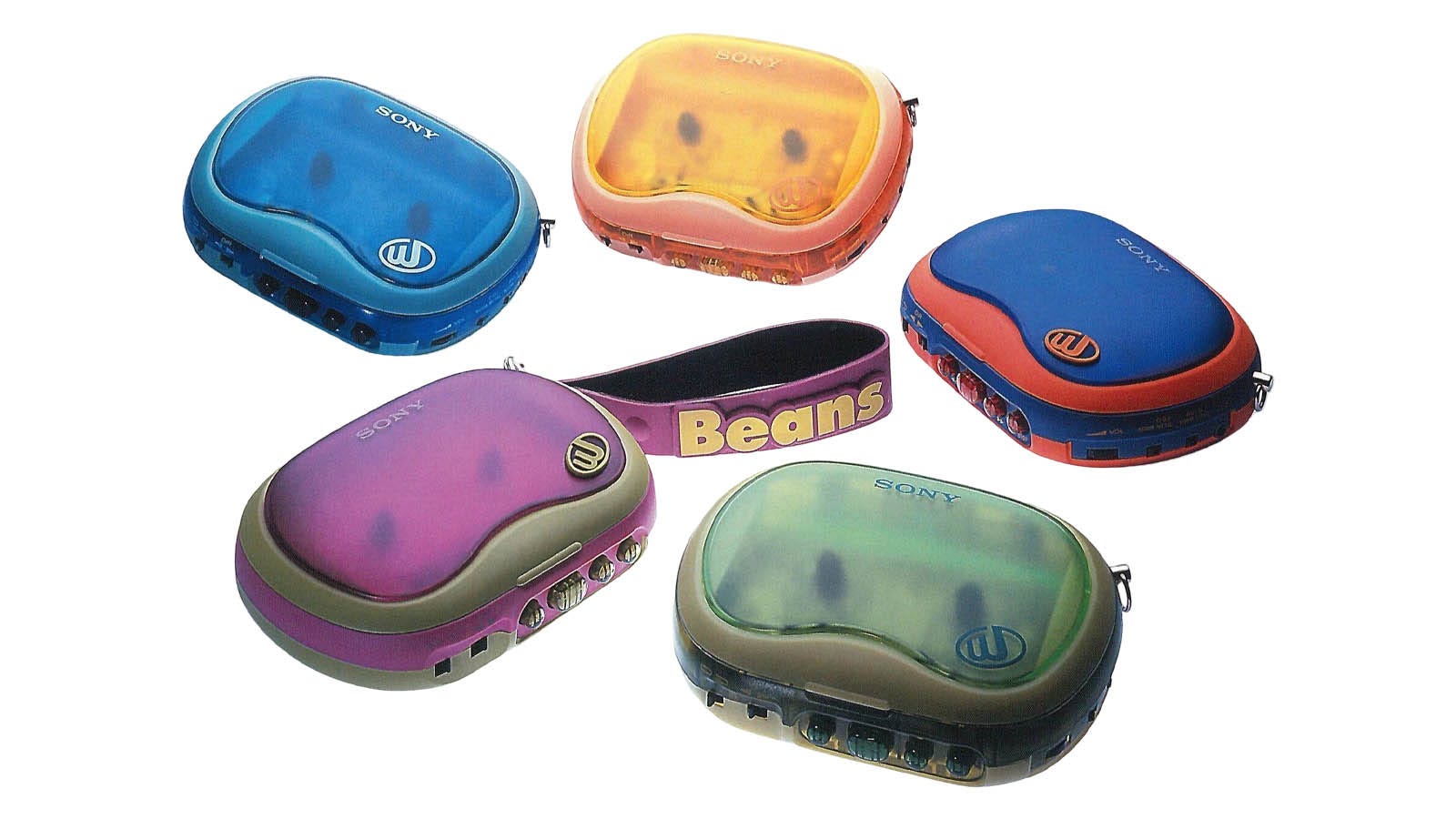

Between 1995 and 1998, Sony released the “Beans,” a line of translucent cassette players. They used iridescent or opalescent shells, with some versions designed to glow in the dark.

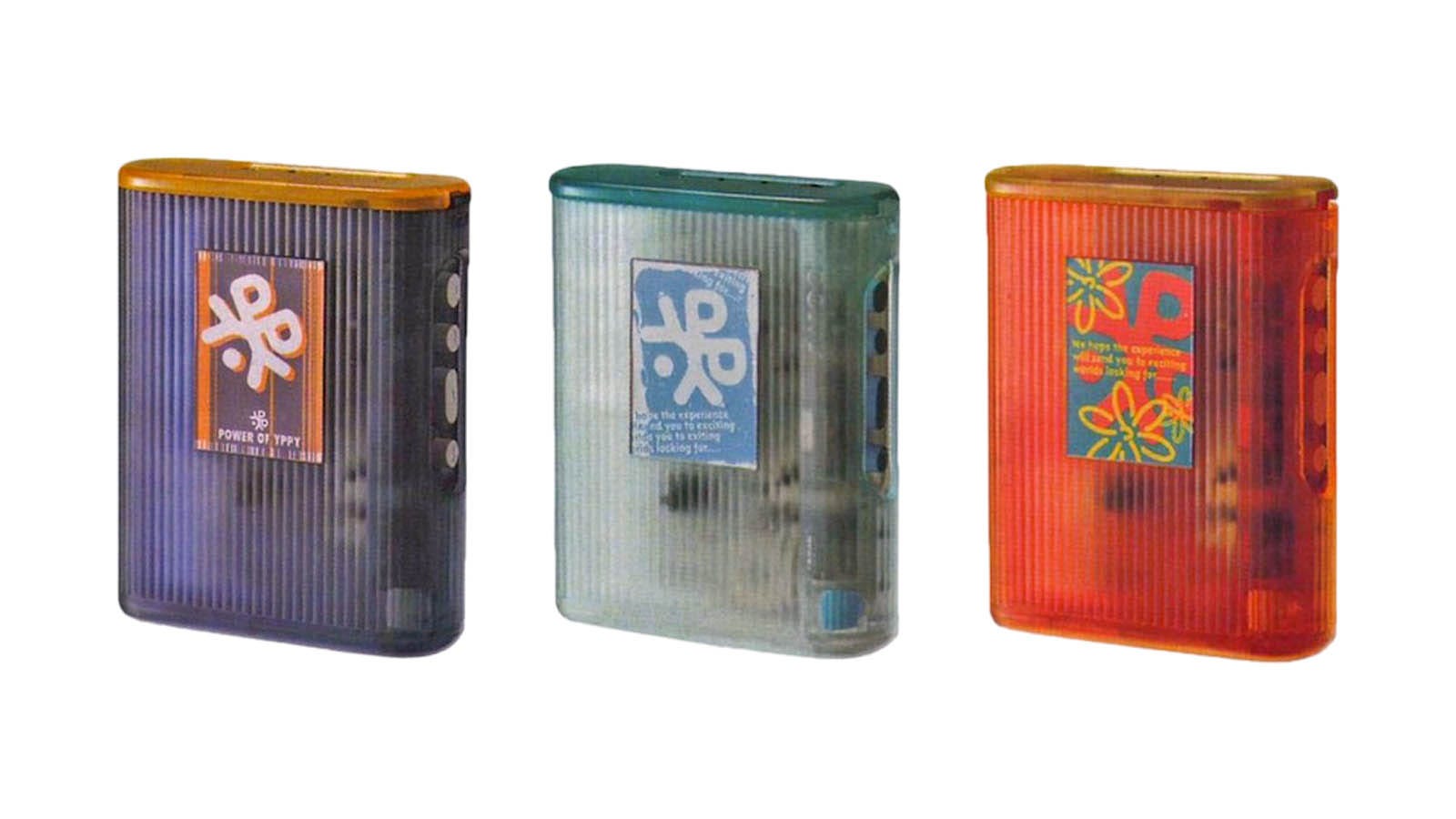

Introduced in 1995, the YPPY line included the YP-ER1, ER2, ES1, ES2, EW1, and EW2. These Walkmans used fabric-wrapped shells and bright colors, targeting a youth-oriented market. The name “YPPY” is generally read as a stylized take on hip.

Functionally, they stayed simple, offering auto-reverse, Mega Bass, and AVLS, without the more advanced digital features found elsewhere in Sony’s range. Sold mainly in Japan, with limited UK availability and no broad U.S. release, the line remained niche. Its short run and distinctive styling later made it collectible.

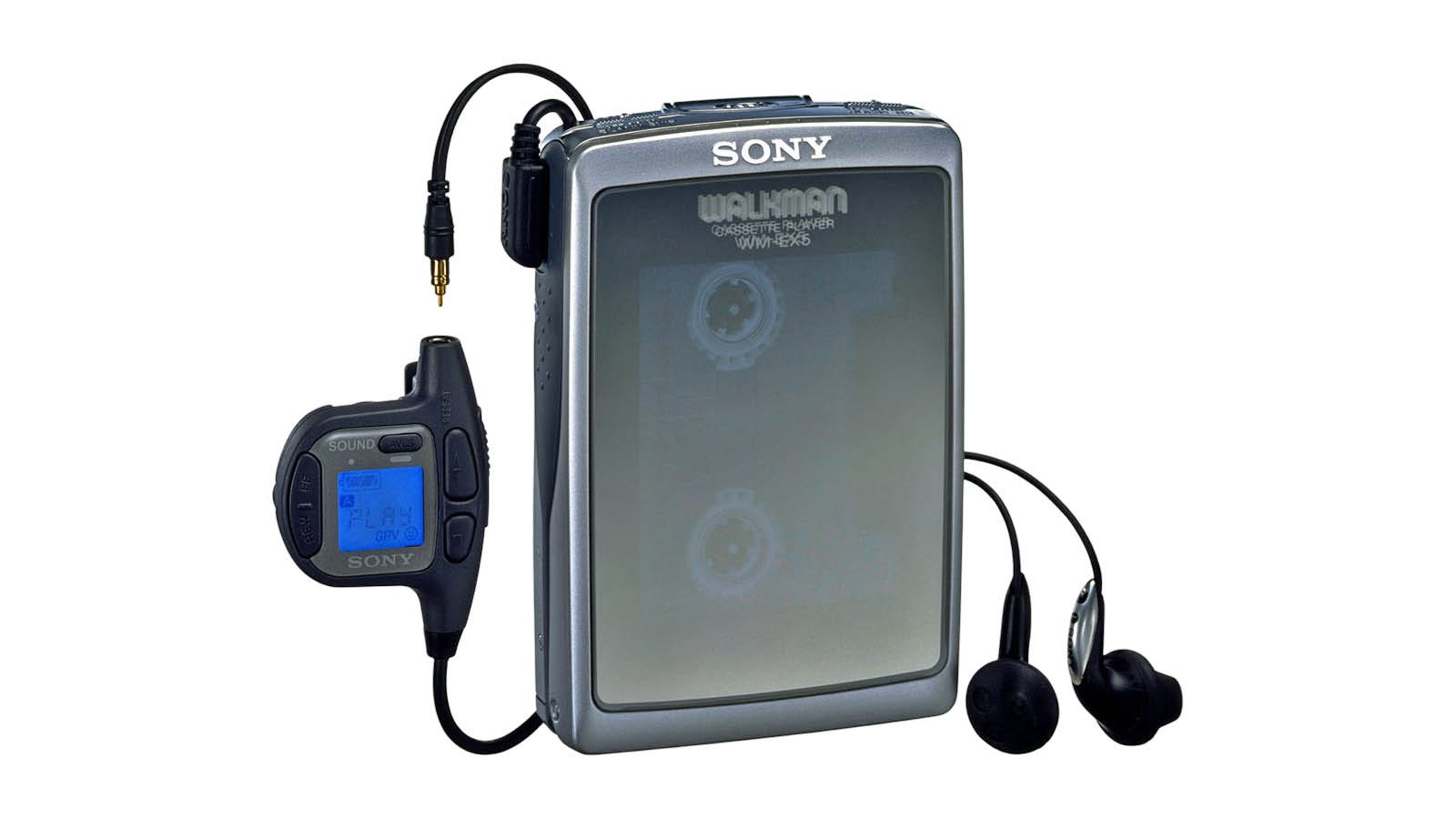

Released in 1996 for Sony’s 50th anniversary, the WM-EX5 stood out for its mirrored cassette lid, finished edge to edge.

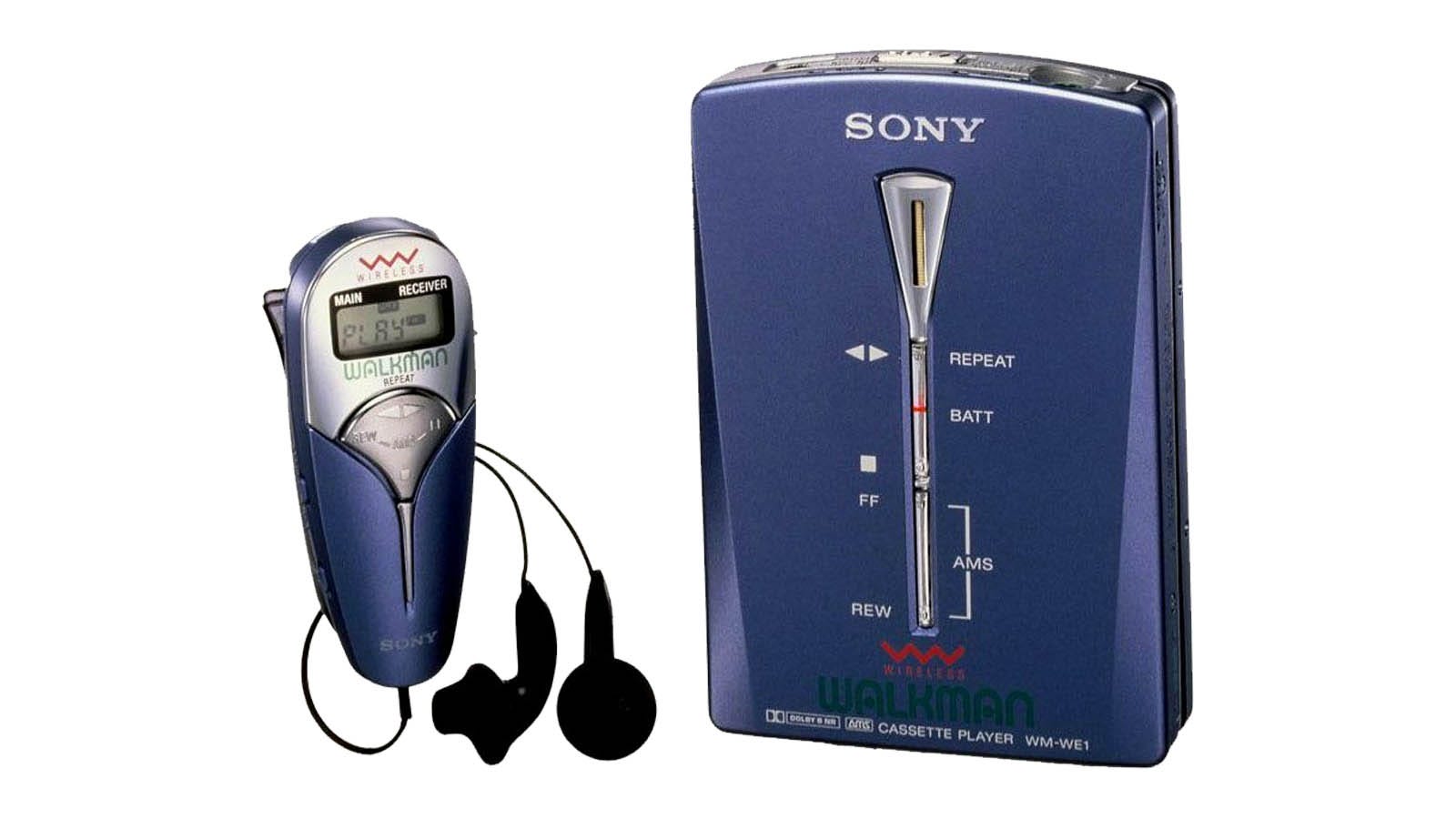

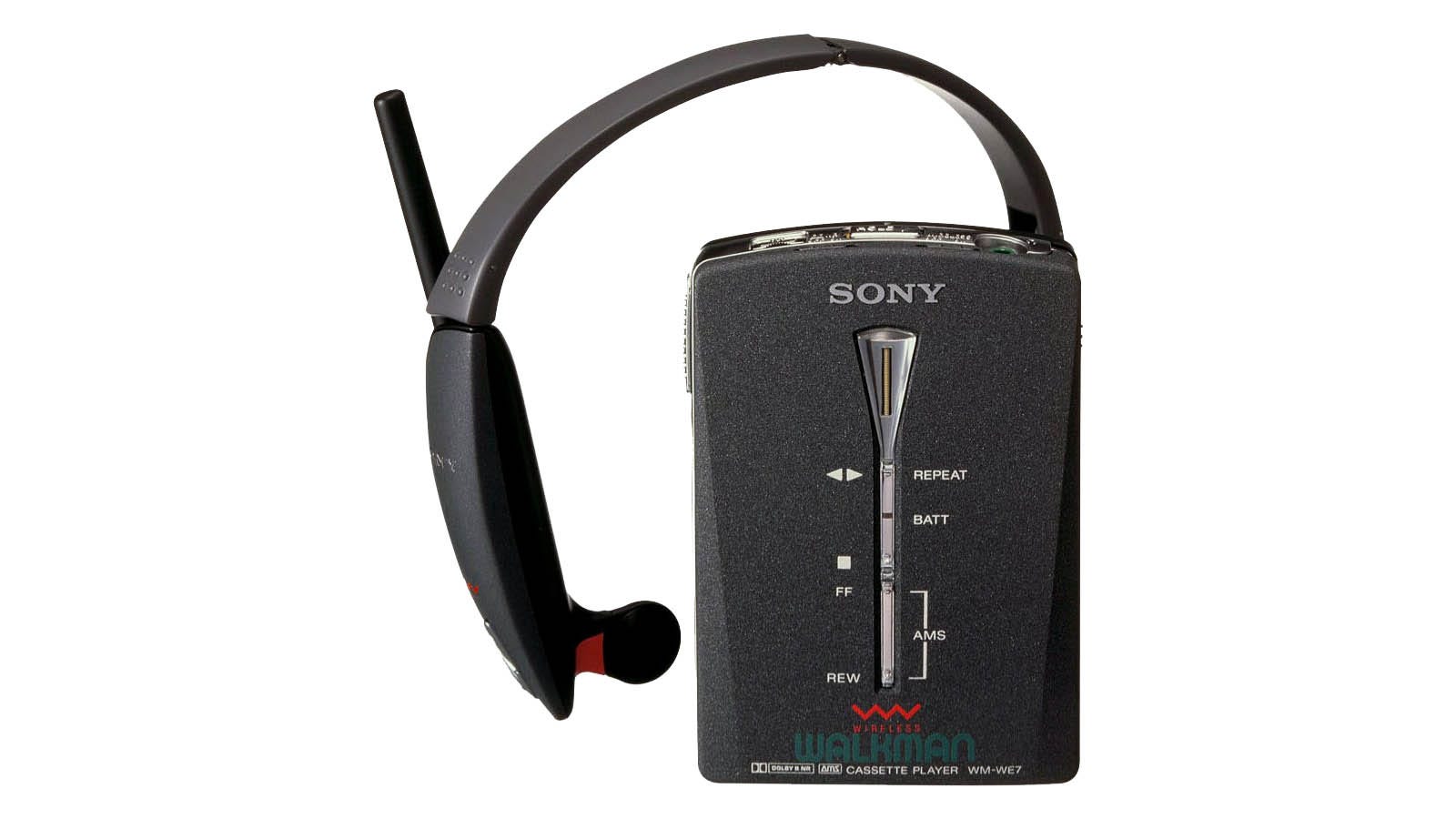

Released in 1997, the WM-WE1 and WM-WE7 were near-identical wireless Walkman. Both paired wireless headphones with a remote, auto-reverse, EXDBB, Dolby B, and a gumstick battery rated for about 26 hours. The difference lay in the headphones: the WE1 used standard wireless cans, while the WE7 shipped with foldable, alien-shaped over-ear headphones.

Both models came in gray with the same plastic frame, metal case, and manual tape selector. The WM-WE7 accepted either a gumstick or AA battery, while the WM-WE1 relied solely on the gumstick. Functionally they were identical, aside from headphone design and the WE7’s added power flexibility.

Released in 1997, the WM-MV1 was a budget Walkman with a metal case. It included auto-reverse, Dolby B, and a vibration guard, ran on two AA batteries for up to 22 hours, and weighed 245 grams. Color options were gray, green, and orange/copper.

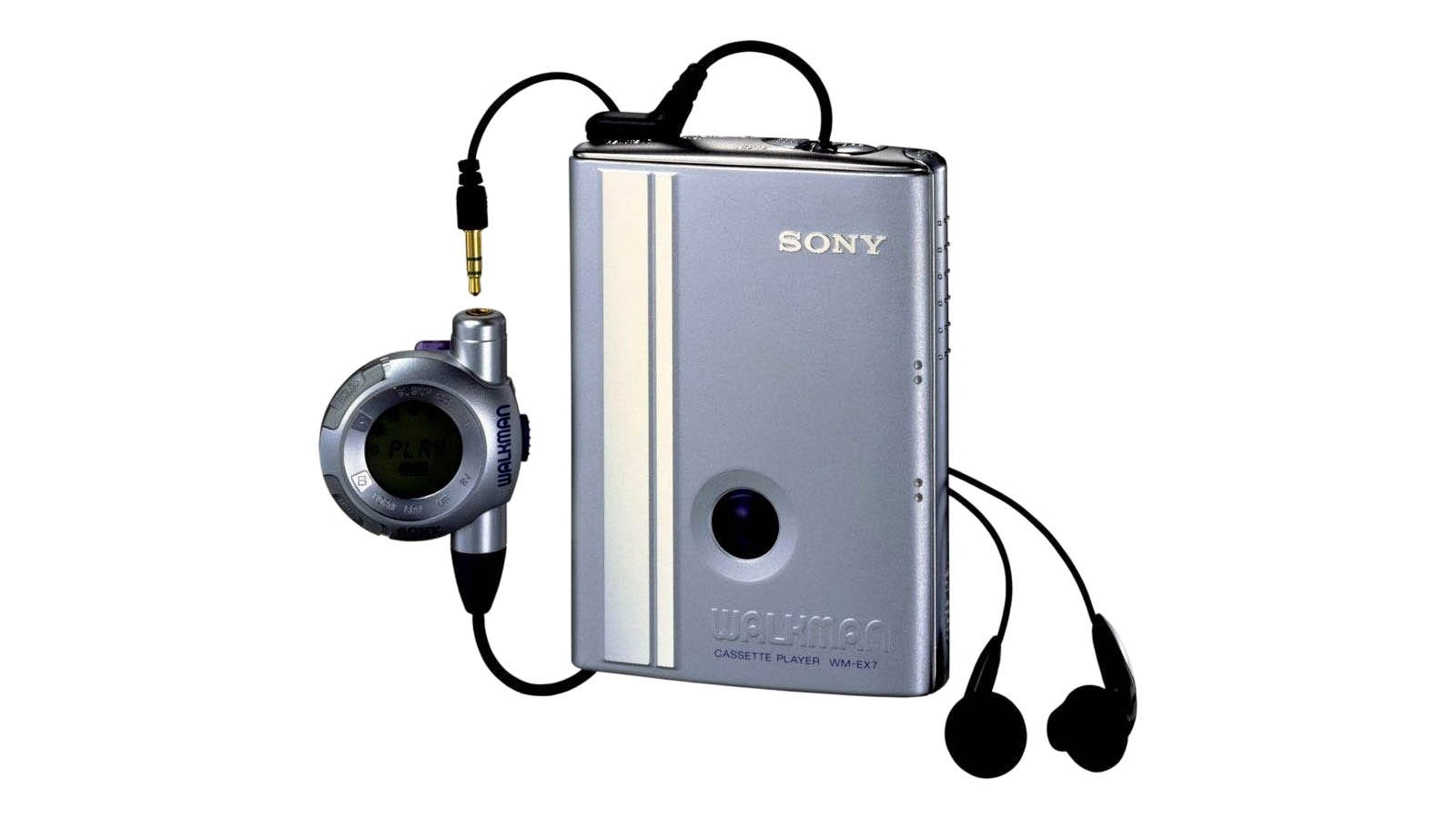

Released in 1998, the WM-EX7 reflected the Walkman’s late shift toward digital cues. Its Music Information Data Bank let users enter album, artist, and track data for up to ten tapes, viewable on the LCD without printed inserts.

Released in 1997, the WM-EX655 used a diamond-shaped aluminum body with a metal case. It included a remote control, ran on a gumstick battery for about nine hours, and came in black, gray, blue, and orange/copper.

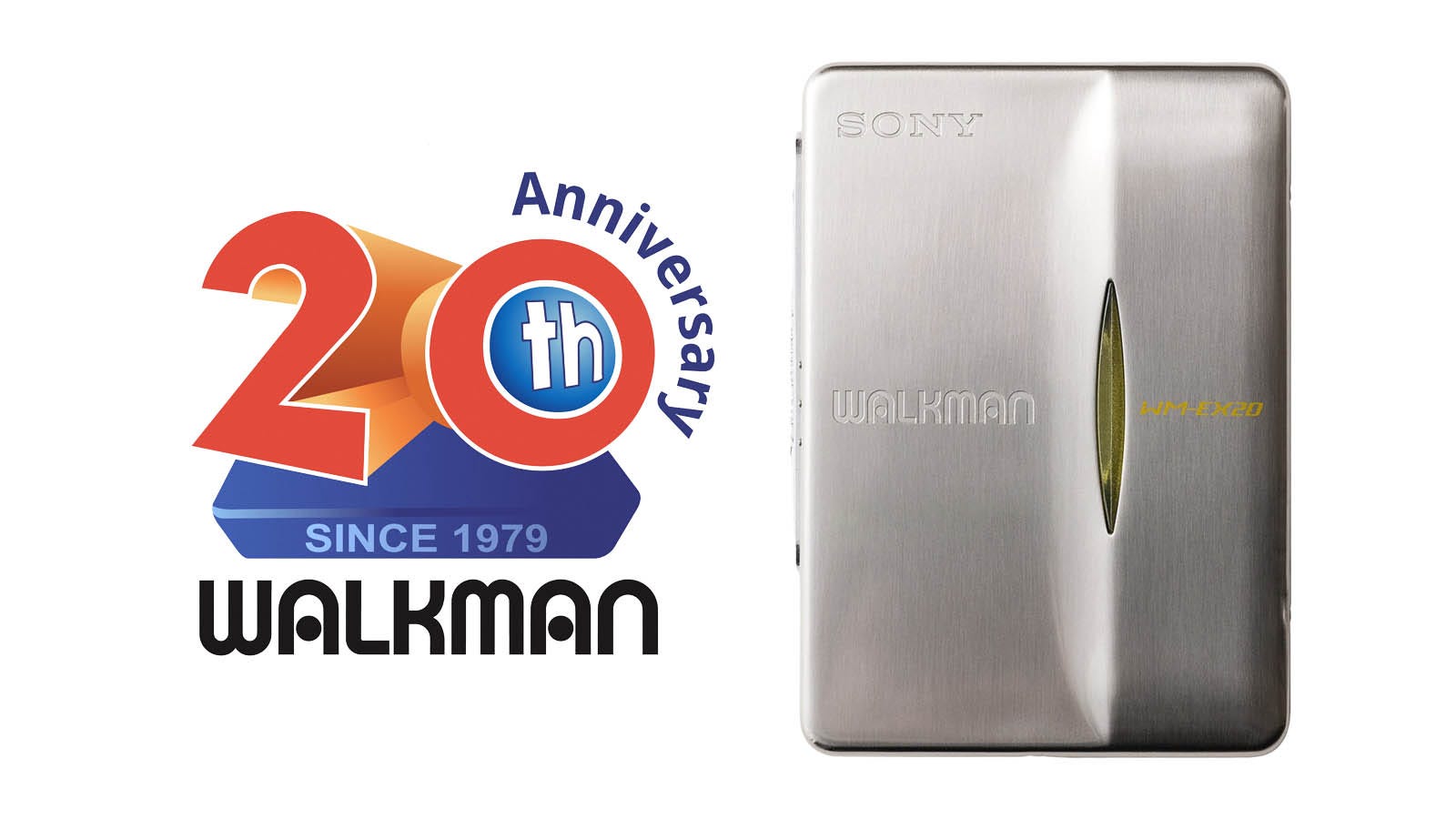

Released in 1999 for the Walkman’s 20th anniversary, the WM-EX20 was the first model with a stainless steel body, designed by Kataoka Design Studio. It paired that construction with MEGA SURROUND, auto-reverse, Mega Bass, Dolby B, and a rated battery life of up to 86 hours.

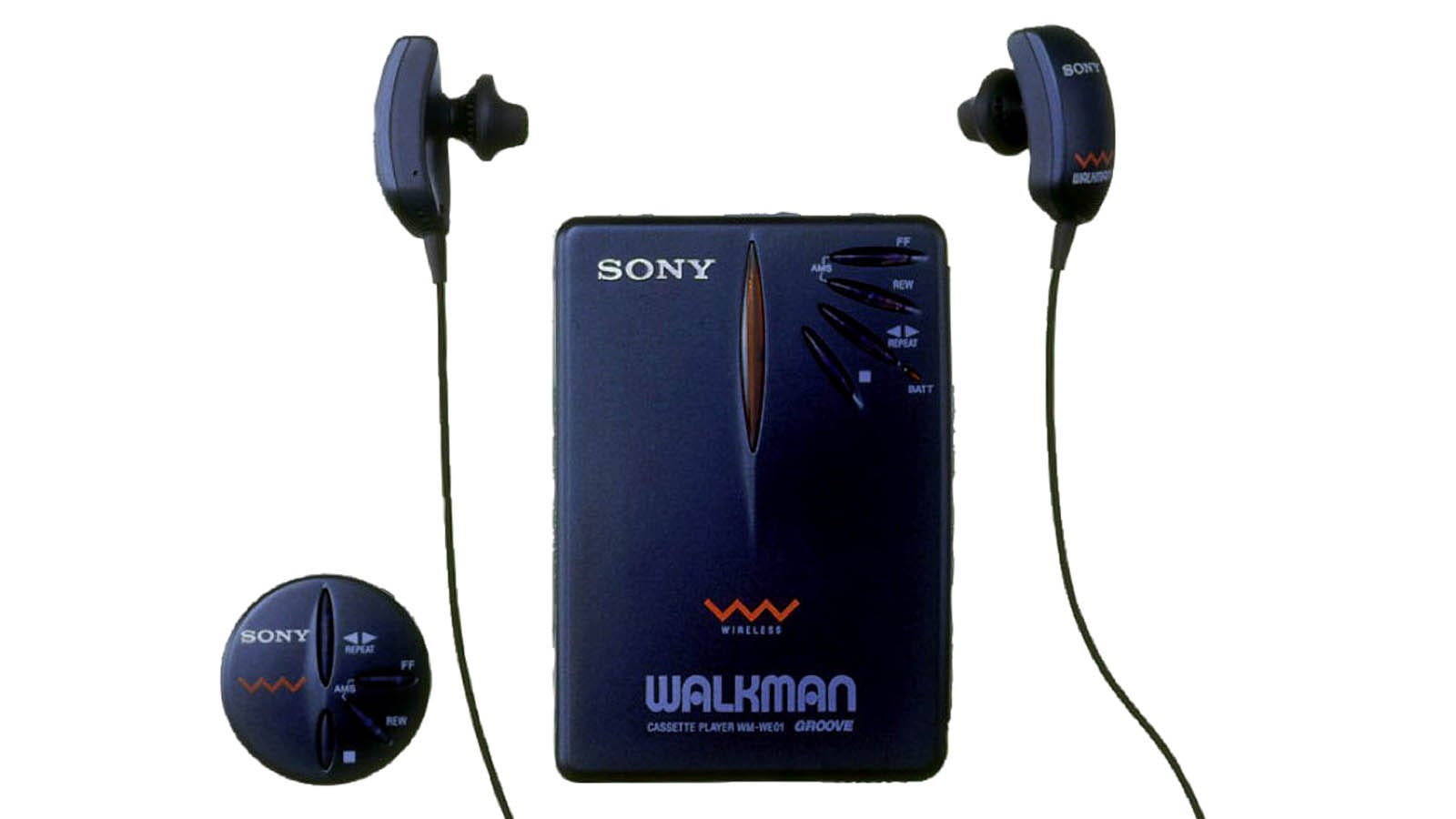

Released alongside the D-E01 Discman, the WM-WE01 became the final wireless Walkman. It paired wireless headphones and a wireless remote with GROOVE bass, Dolby B, auto-reverse, and a rated 26-hour battery life. Issued as a limited edition, it closed Sony’s wireless cassette line at the Walkman’s 20-year mark.

The EX2000 was Sony’s final top-tier statement. A slim silver body housed a carefully tuned transport, with a refined head and heavier flywheels to stabilize tape motion. The result was playback closer to a small home deck than a pocket player.

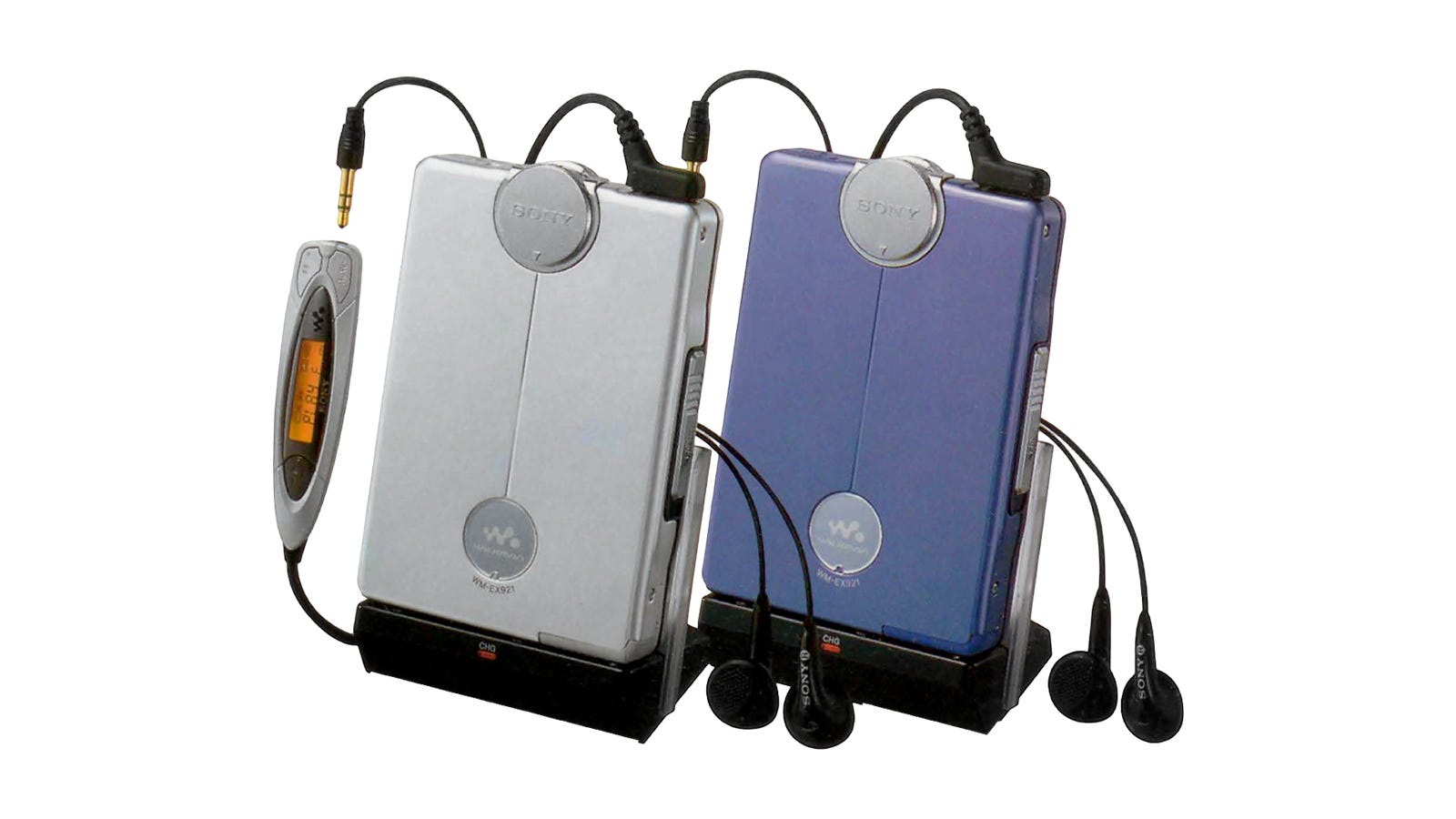

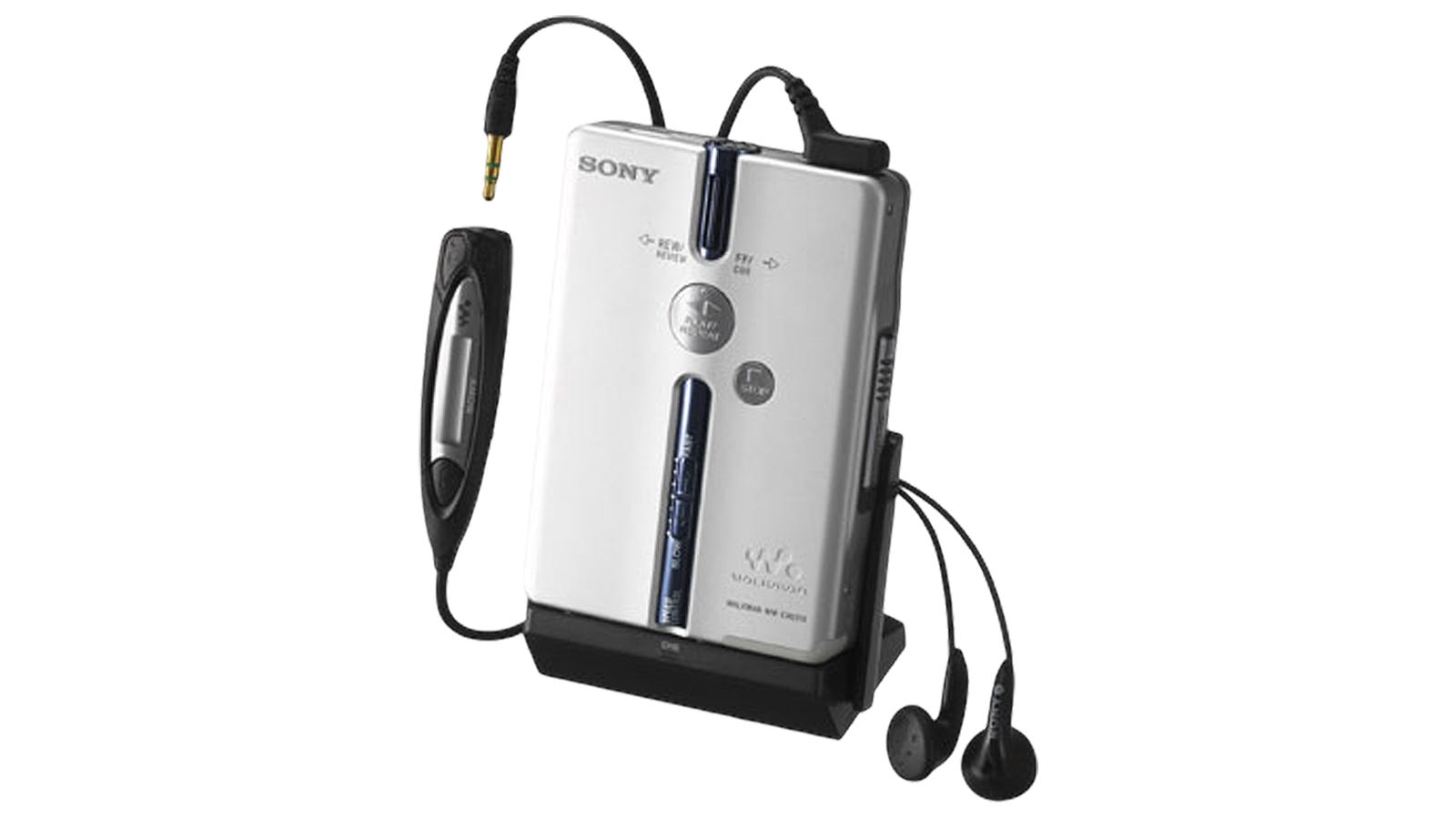

The WM-EX921 carried the cassette Walkman into the early 2000s. A body-mounted jog lever sped up control, paired with a backlit remote and charging stand. Running solely on its rechargeable cell, it reached up to 45 hours of playback, reflecting Sony’s push to refine analog playback as MiniDisc shifted toward computer use.

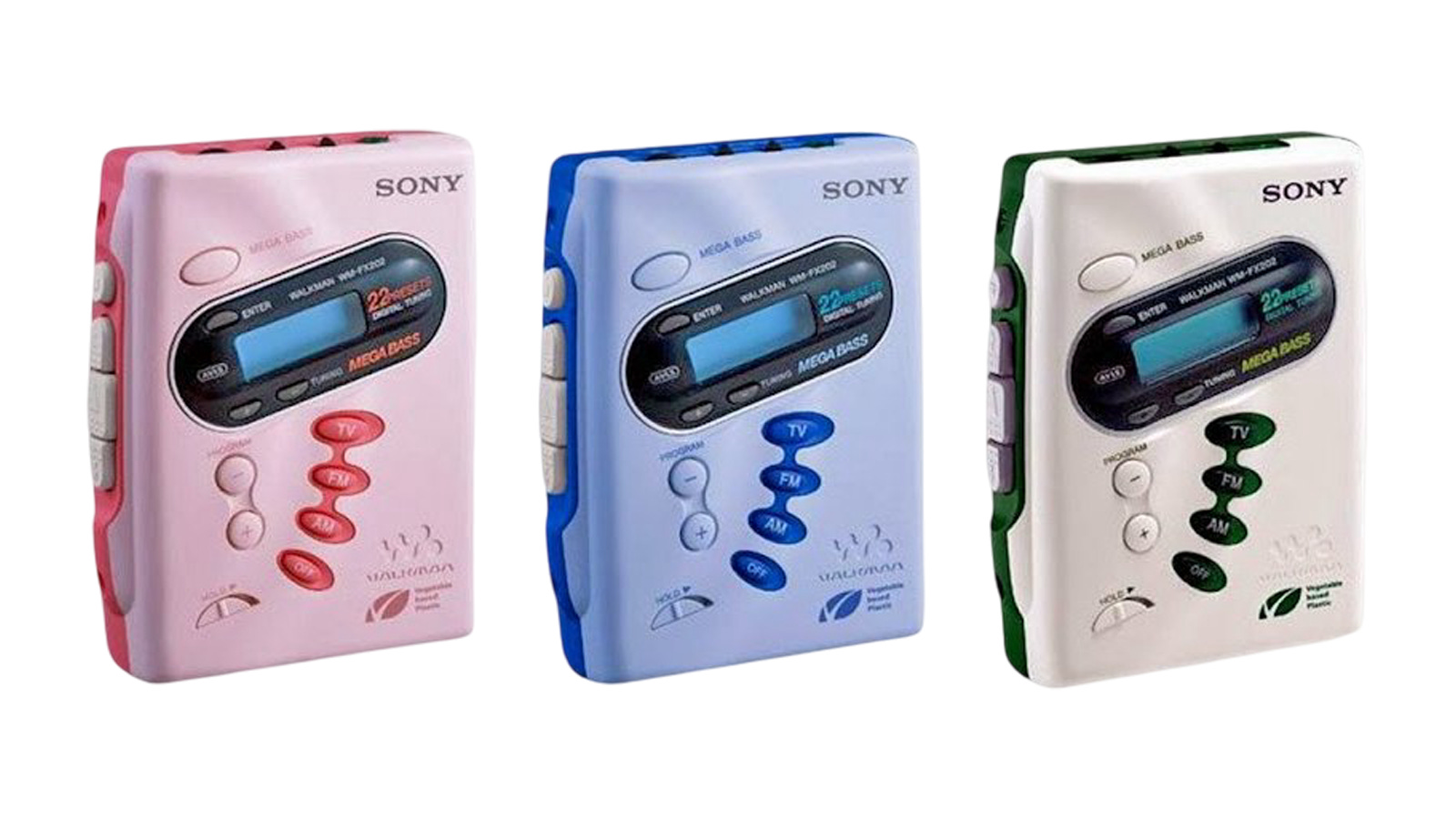

The WM-FX202 hid a quiet experiment inside a familiar shell. Sony molded its casing from a starch-blend biodegradable plastic that looked identical to standard housings and was never marketed as such. Otherwise, it followed Sony’s late-cassette formula: softened edges, a basic AM/FM tuner, and a reliable transport, positioned as a budget model for everyday use.

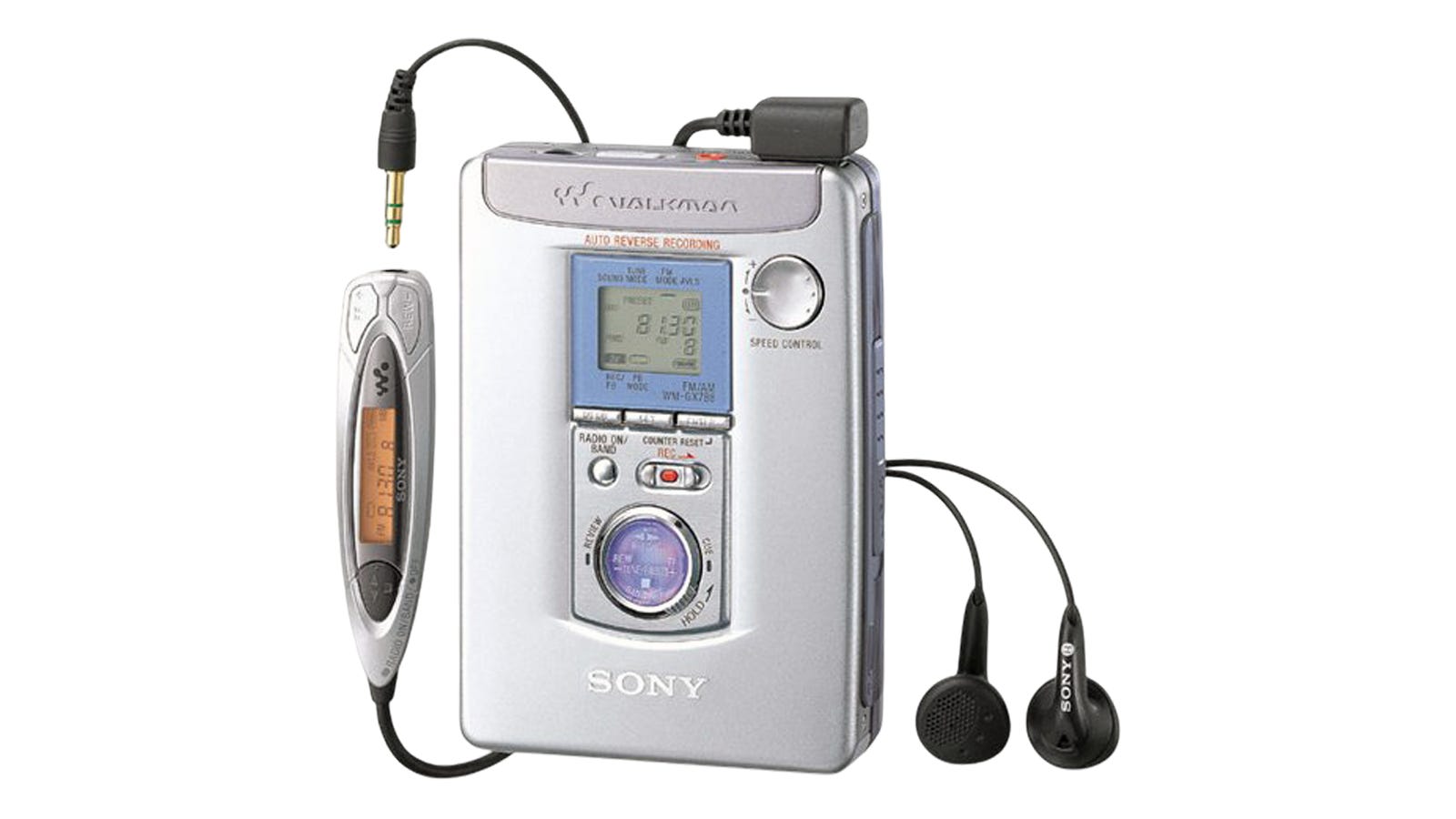

The WM-GX788 ended Sony’s GX line and became the last Japan-market Walkman to handle both recording and playback. It paired a compact transport with a digital AM/FM/TV tuner and external-input recording, using a metal front and plastic chassis to keep weight down. With it, the multi-function cassette Walkman effectively closed out in the home market.

Released in 2004, the WM-EX651 became the final cassette Walkman for the Japanese market. A metal front with a plastic frame kept weight down, while a jog wheel handled basic navigation within Sony’s late-era layout. Power came from a rechargeable gumstick with optional AA support, delivering long runtimes while omitting extras like radio or Dolby. It closed the line as listening had already shifted to MiniDisc and solid-state players.

By the time cassette Walkman production ended in Japan, the format had already been pushed to its practical limits. What started as a quick recorder modification became a long-running testbed for mechanisms, materials, power systems, radios, wireless add-ons, and form factors.

The cassette Walkman did not collapse; it thinned out. Prestige and experimentation faded, but basic models stayed on shelves for years because they were cheap, dependable, and still useful where cassettes lingered.

Its legacy sits in the idea, not the medium. Private listening and portable sound outlived the cassette itself.
